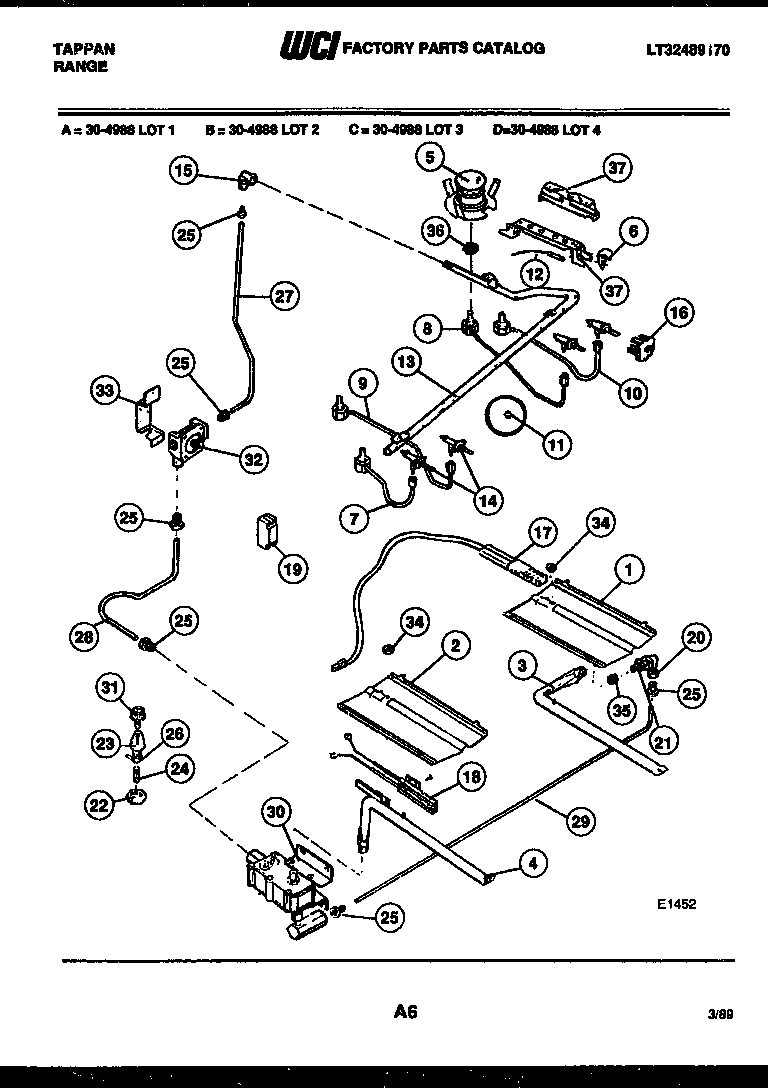

30-4988-00-04 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*11489WCI 3051420
1WCI 3131283
2BAFFLE-OVN BURNER
3WCI 079T028P01
4WCI 3131290
5WCI 079T032S02
6WCI 3018617
7WCI 079T033H01
8WCI 079T033H02
9WCI 079T033H03
10WCI 079T033H04
11WCI 247T074P01
12IGNITER-TOP BURNER (4)
15ELBOW 1/2 NP TO 9/16-24
15ANUT COMPRESSN (4)
16316035200 Frigidaire Ignition Switch
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20WCI 455T008P02
21NUT
25FITTING-LOXIT (8)
27TUBE-REGUL TEE
28TUBE-VALVE TO REGUL
29TUBE-VALVE TO MIXER ELBOW
305303208499 Frigidaire Safety Gas Valve
30A5300809968 Frigidaire Dishwasher P-1 Washer
325303935125 Frigidaire Pressure Regulator
33316091600 Frigidaire Oven Bracket
345303013272 Frigidaire Oven Nut
35SPUD NO 50
36ASPACER-BAFFLE (2) (NON-ILLUSTRATED)
36NUT SPECIAL
37AWCI 136T355W03
37WCI 072T839F02
