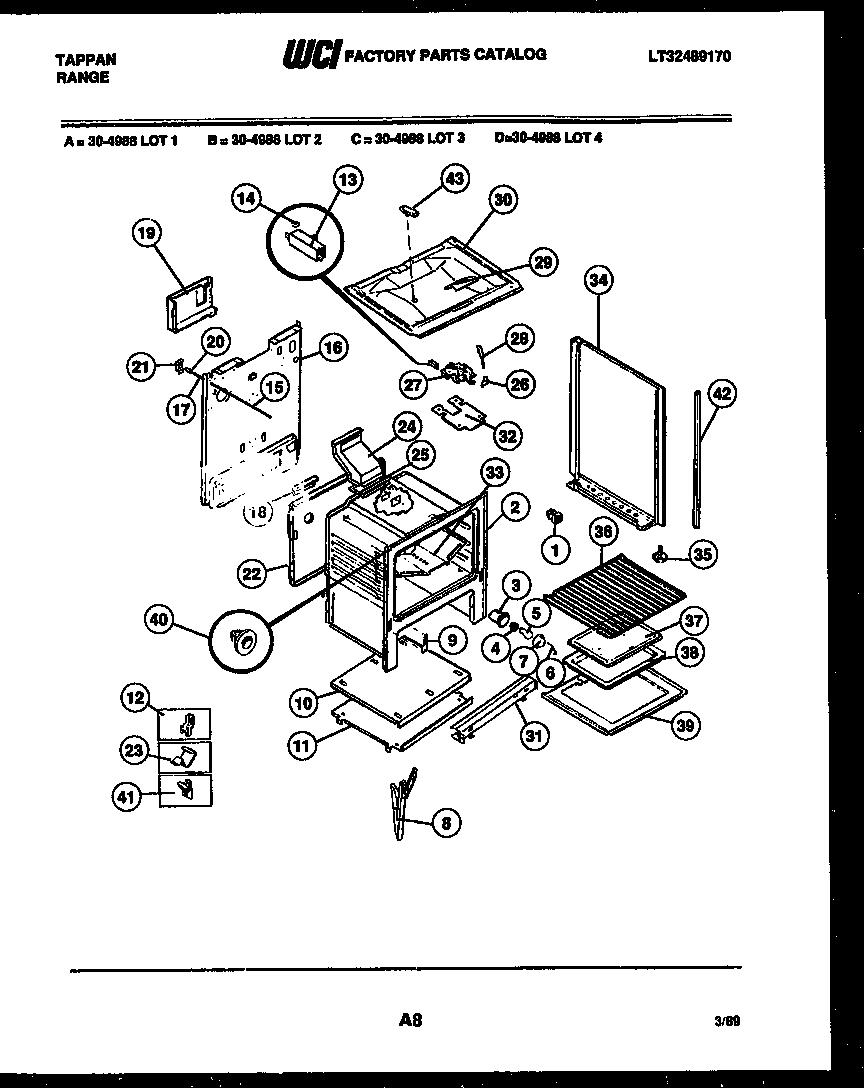

30-4988-08-04 06 – BODY PARTS

30-4988-08-04 06 – BODY PARTS

Written by

in

30-4988-08-04 06 – BODY PARTS

Products

PositionProduct
*11496WASHER-BLACK
1WCI 665T188P02
3WCI 3131363
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WCI 3131104
7WCI 3131298
8WCI 316007002
9WCI 3131570
10WCI 3131312
11WCI 3131313
11AWCI 665T437F01
12CLIP-TUBING (2)
13WCI 3131672
14WCI 241T001P01
14ASTUD, SPACER (2) (NON-ILLUSTRATED)
15WCI 174T329P01
15A5304534000 Frigidaire Cord
16WCI 3131567
17ROD-LIGHT SWITCH
18ANGLE LIGHT SWITCH
19CHANNEL-LIGHT SHLD
20SWITCH-OVEN LITE DOOR
21BRKT LIGHT SWITCH
22WCI 3131316
23CLIP, WIRE
24WCI 3131931
25BSCREW-SET KNOB MTG (NON-ILLUSTRATED)
25ASHIELD-LATCH (NON-ILLUSTRATED)
25316542102 Frigidaire Flue Gasket
27WCI 368T027P01
28WCI 3131357
29WCI 3131101
30WCI 095T030F02-86
31SHIELD-FRONT
33ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
33WCI 3200836
34WCI 3201000
34AWCI 3201001
35WCI 636M004P01
36316067902 Frigidaire Oven Rack
37WCI 3131356
38PAN, BROILER
39WCI 058T036F03-86
39B3131903 Frigidaire Door/Drawer Bumper
39A316064600 Frigidaire Oven Support
40EWCI 358T158S02
40F316282700 Frigidaire Oven Screw
40C08067973 Frigidaire 0 Insulation
40BINSUL OVEN BACK (NON-ILLUSTRATED)
40AFSTNR-POWER CORD (NON-ILLUSTRATED)
40BUTTON-REMOTE SW
413051162 Frigidaire Oven Range Front Broiler Drawer Glide
42TRIM-VERT B/S (2)
42ASHIELD-OVN TOP
42BWCI 3131590
43COVER, BURNER BOX
