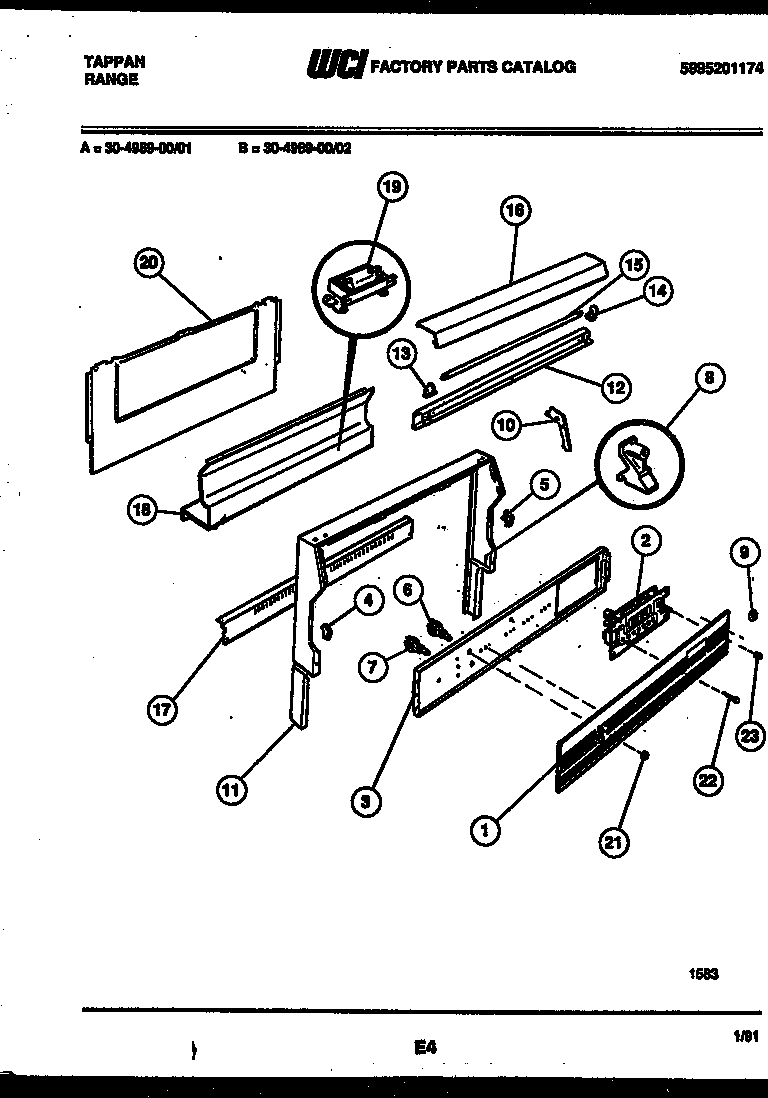

30-4989-00-02 02 – BACKGUARD

30-4989-00-02 02 – BACKGUARD

Written by

in

30-4989-00-02 02 – BACKGUARD

Products

PositionProduct
*33550FASTENER, GLASS (2)
1WCI 5303270899
2WCI 3204643
3PLATE – INST MOUNTING
4WCI 3205352
5WCI 3205353
6WCI 3205358
7WCI 3205357
8SUPPORT-BACKGUARD,(2)
9WCI 3205356
10WCI 3204609
10AWCI 3204610
11WCI 3205359
12WCI 3131277
13RECEPTACLE-FLU LT RH
14RECEPTACLE-FLU LT LH
15BULB-FLUOR
16TRIM – CANOPY
17WCI 3131241
18WCI 3206279
19WCI 5303051115
20SHIELD-BACKGUARD,REAR WALL
21WCI 3205350
22KNOB-CLOCK (7)
23KNOB-CLOCK
