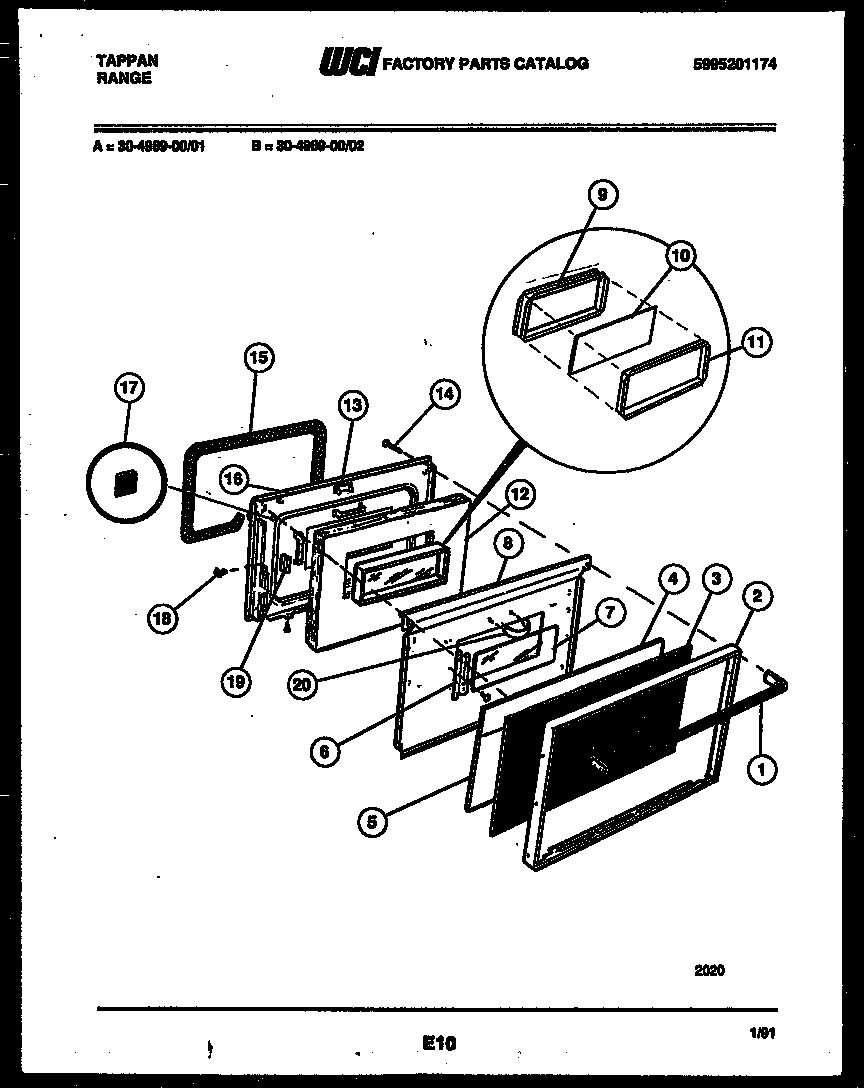

30-4989-00-02 06 – DOOR PARTS

30-4989-00-02 06 – DOOR PARTS

Written by

in

30-4989-00-02 06 – DOOR PARTS

Products

PositionProduct
*33563FSTNR-NYLON SPACER (NON-ILLUSTRATED)
*33563SEAL-ROPE, 0.25 DIA
1HANDLE-OVEN DOOR
2WCI 5303269511
3WCI 5303269508
4ALUM FOIL-B/G GLASS
55303208655 Frigidaire Reflector Assembly
6BRKT GLASS
7GLASS-OVEN DOOR, HEAT BARRIER, (2)
8WCI 5303269510
10GLASS-OVEN DOOR, INNER
11WCI 5303209511
12INSULATION-OVEN DOOR
13WCI 5303209515
14WCI 3016851
155303131601 Frigidaire Oven Seal
