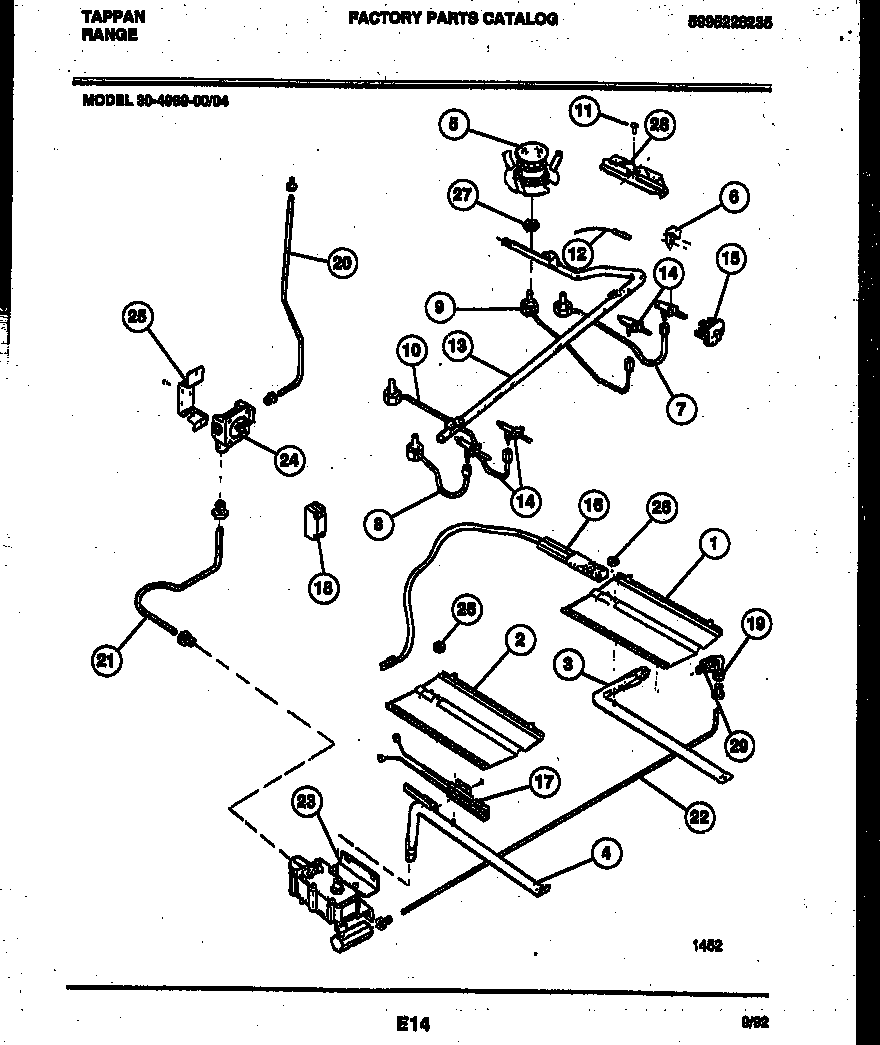

30-4989-00-04 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
5BURNER TOP (4)
6WCI 3018617
7WCI 5303283666
8WCI 5303283665
9WCI 5303283667
10WCI 5303283668
11WCI 3051420
12ELECTRODE
13WCI 5303271375
14VALVE-TOP BURNER, 3 POSITION, (4), W/SCREW
15SWITCH-IGNITER, (4)
165303935068 Frigidaire Flat Igniter
175303935066 Frigidaire Oven Flat Igniter 17" Leads
185303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
19WCI 08067979
20TUBE-ALUM 3/8 REG/MANIFOLD PIPE
21TUBE-VALVE TO REGUL
22TUBE-VALVE TO MIXER ELBOW
235303208499 Frigidaire Safety Gas Valve
245303935125 Frigidaire Pressure Regulator
25316091600 Frigidaire Oven Bracket
27NUT, SPECIAL
28WCI 3206267
295303013272 Frigidaire Oven Nut
