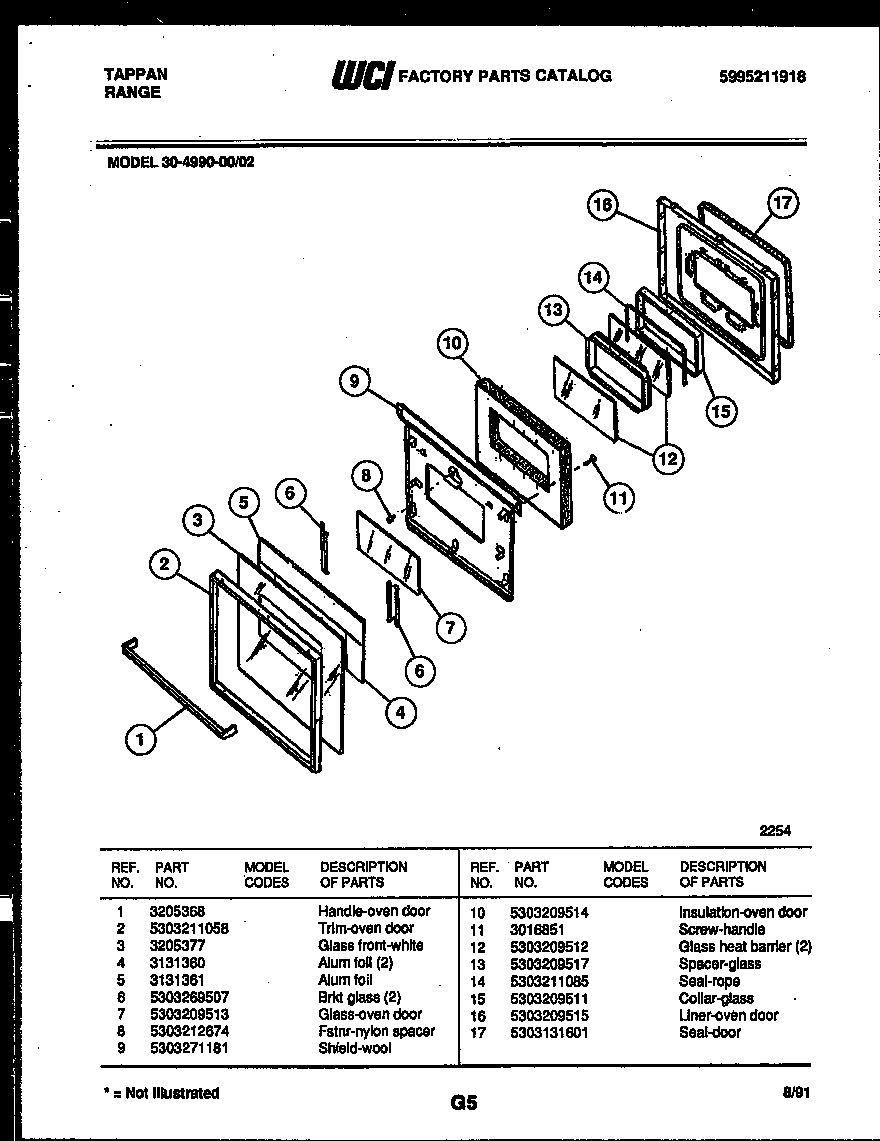

30-4990-00-02 05 – DOOR PARTS

Products

Position	Product
1	HANDLE-OVEN DOOR
2	WCI 5303211058
3	GLASS FRONT (VIS. WHITE)
4	5303208655 Frigidaire Reflector Assembly
5	ALUM FOIL-B/G GLASS
6	BRKT GLASS
7	GLASS-OVEN DOOR, INNER
8	FSTNR-NYLON SPACER (NON-ILLUSTRATED)
9	SHIELD-INSULATION, WHITE
10	INSULATION-OVEN DOOR
11	WCI 3016851
12	GLASS-OVEN DOOR, HEAT BARRIER, (2)
13	WCI 5303209517
14	SEAL-ROPE, 0.25 DIA
15	WCI 5303209511
16	WCI 5303209515
17	5303131601 Frigidaire Oven Seal
