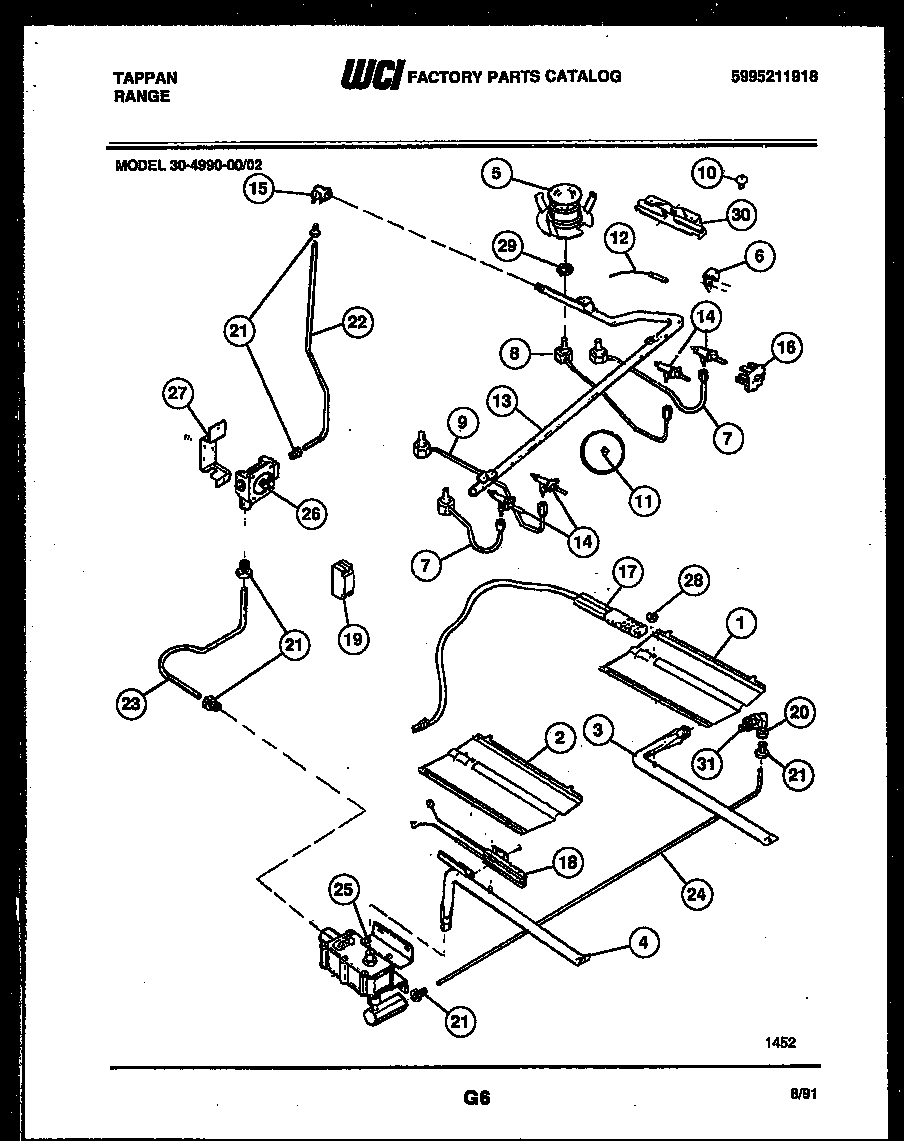

30-4990-00-02 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
5BURNER TOP (4)
6RETAINER WIRE
7BURNER TUBE-RF & LF
8WCI 5303011569
9WCI 5303011570
10WCI 3051420
11FERRULE (4)
12IGNITER-TOP BURNER (4)
13WCI 3131440
14VALVE 3 POS (4)
15ELBOW 1/2 NP TO 9/16-24
15ANUT COMPRESSN (4)
16316035200 Frigidaire Ignition Switch
17WCI 53008067970
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20WCI 5303208640
21FITTING-LOXIT (8)
22TUBE-ALUM 3/8 REG/MANIFOLD PIPE
23TUBE-VALVE TO REGUL
24TUBE-VALVE TO MIXER ELBOW
255303208499 Frigidaire Safety Gas Valve
265303935125 Frigidaire Pressure Regulator
27316091600 Frigidaire Oven Bracket
285303013272 Frigidaire Oven Nut
29NUT, SPECIAL
30WCI 3206267
