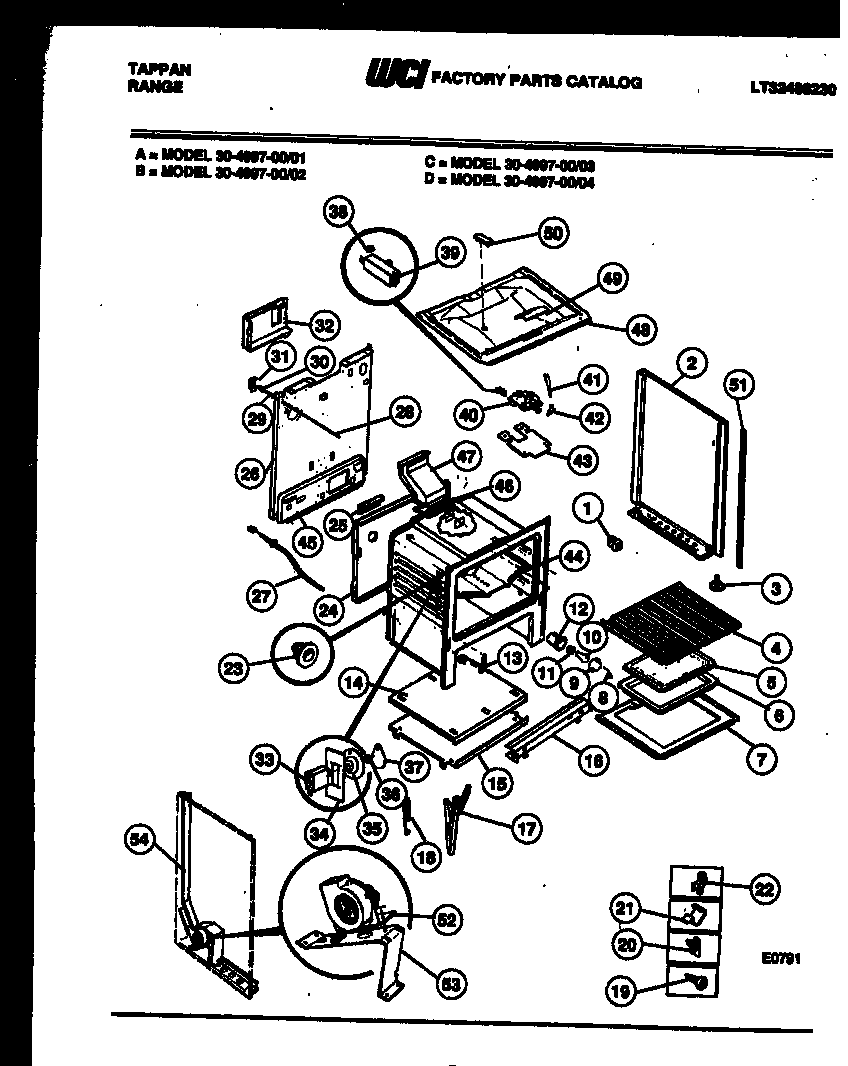

30-4997-08-03 07 – BODY PARTS

Products

PositionProduct
*15052RIVET ACCORDIAN (NON-ILLUSTRATED)
*15052SHIELD-LATCH
*15052SPACER-BAFFLE (2) (NON-ILLUSTRATED)
1SPACER, BODYSIDE (8)
2APANEL B/S-RH BLACK
2PANEL B/S-LH BLACK
3WCI 636M004P01
4316067902 Frigidaire Oven Rack
5WCI 3131356
6PAN, BROILER
7WCI 058T036F03-86
9WCI 3131104
10316538904 Frigidaire Oven Lamp Light
11316116400 Frigidaire Oven Light Socket
12WCI 3131363
13WCI 3131570
14WCI 3131951
15WCI 3131313
16SHIELD-FRONT
17WCI 316007002
18WCI 3051306
19SCREW OVEN BOTTOM
203051162 Frigidaire Oven Range Front Broiler Drawer Glide
21CLIP, WIRE
225303284616 Frigidaire Range Bulb Clip Thermostat
23BUTTON-REMOVE LIGHT SWITCH
24WCI 3131316
25ANGLE LIGHT SWITCH
26WCI 3131567
275304497424 Frigidaire Oven Temperature Sensor Probe Kit
28WCI 3051251
29ROD-LIGHT SWITCH
30SWITCH-OVEN LITE DOOR
31BRKT LIGHT SWITCH
32CHANNEL-LIGHT SHLD
33RECEPTACLE-PROBE
34SHIELD-PROBE RECEPT
35PLATE-RECEPTACLE MTG
36WCI 479T069P35
37COVER-PROBE RECEPT
38WCI 241T001P01
39WCI 3131672
40WCI 3015453
41WCI 3131357
42WCI 358T158S02
43SHIELD-OVN TOP
44WCI 3131315
45WCI 3131590
46316542102 Frigidaire Flue Gasket
47WCI 3131931
48WCI 095T030F02-86
49WCI 3131101
50COVER-BURNER BOX
51NALUM-FOIL-MUST BE USED WHEN REPLACING BODYSIDE
51JINSUL OVEN BACK (NON-ILLUSTRATED)
51I08067973 Frigidaire 0 Insulation
51DFSTNR-POWER CORD (NON-ILLUSTRATED)
51G316064600 Frigidaire Oven Support
51H3131903 Frigidaire Door/Drawer Bumper
51TRIM-VERT B/S (2)
51LINSULATION-WRAP (NON-ILLUSTRATED)
51MMEAT PROBE
51FSCREW-SET KNOB MTG (NON-ILLUSTRATED)
51AWCI 655T437F01
51ESHIELD-LATCH (NON-ILLUSTRATED)
51BSTUD, SPACER (2) (NON-ILLUSTRATED)
51C5304534000 Frigidaire Cord
51KINSULATION, OVEN TOP
52WCI 3018671
53WCI 3018672
54DUCT-AIR
