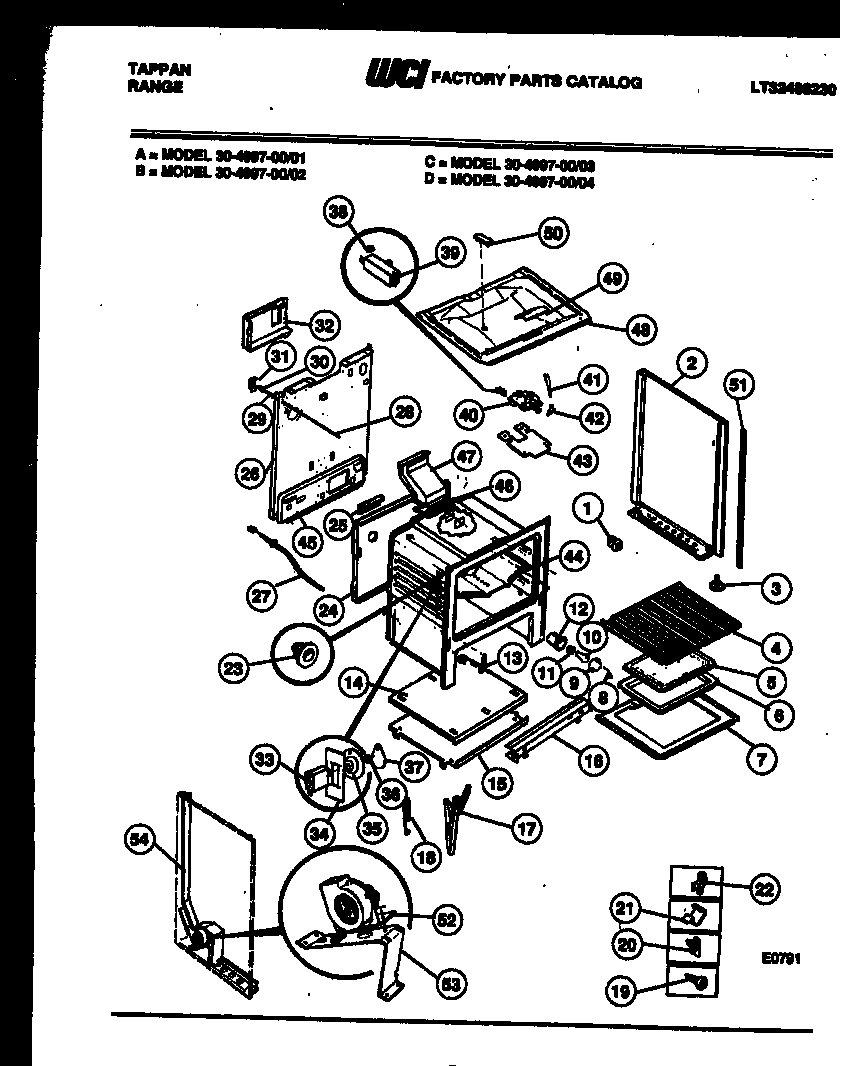

30-4997-23-01 07 – BODY PARTS

Products

Position	Product
*15052	SHIELD-LATCH
*15052	RIVET ACCORDIAN (NON-ILLUSTRATED)
*15052	SPACER-BAFFLE (2) (NON-ILLUSTRATED)
1	SPACER, BODYSIDE (8)
2A	PANEL B/S-RH BLACK
2	PNL. B/S (LH ALMOND)
2A	PNL. B/S (RH ALMOND)
2	PANEL B/S-LH BLACK
3	WCI 636M004P01
4	316067902 Frigidaire Oven Rack
5	WCI 3131356
6	PAN, BROILER
7	WCI 058T036F03-86
9	WCI 3131104
10	316538904 Frigidaire Oven Lamp Light
11	316116400 Frigidaire Oven Light Socket
12	WCI 3131363
13	WCI 3131570
14	WCI 3131951
15	WCI 3131313
16	SHIELD-FRONT
17	WCI 316007002
18	WCI 3051306
19	SCREW OVEN BOTTOM
20	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
21	CLIP, WIRE
22	5303284616 Frigidaire Range Bulb Clip Thermostat
23	BUTTON-REMOVE LIGHT SWITCH
24	WCI 3131316
25	ANGLE LIGHT SWITCH
26	WCI 3131567
27	5304497424 Frigidaire Oven Temperature Sensor Probe Kit
28	WCI 3051251
29	ROD-LIGHT SWITCH
30	SWITCH-OVEN LITE DOOR
31	BRKT LIGHT SWITCH
32	CHANNEL-LIGHT SHLD
33	WCI 3018669
34	SHIELD-PROBE RECEPT
35	PLATE-RECEPTACLE MTG
36	WCI 479T069P35
37	COVER-PROBE RECEPT
38	WCI 241T001P01
39	WCI 3131672
40	WCI 3015453
41	WCI 3131357
42	WCI 358T158S02
43	SHIELD-OVN TOP
44	WCI 3131315
45	WCI 3131590
46	316542102 Frigidaire Flue Gasket
47	WCI 3131931
48	WCI 095T030F02-86
49	WCI 3131101
50	COVER-BURNER BOX
51A	WCI 655T437F01
51K	INSULATION, OVEN TOP
51M	MEAT PROBE
51I	08067973 Frigidaire 0 Insulation
51E	SHIELD-LATCH (NON-ILLUSTRATED)
51J	INSUL OVEN BACK (NON-ILLUSTRATED)
51D	FSTNR-POWER CORD (NON-ILLUSTRATED)
51F	SCREW-SET KNOB MTG (NON-ILLUSTRATED)
51L	INSULATION-WRAP (NON-ILLUSTRATED)
51G	316064600 Frigidaire Oven Support
51B	STUD, SPACER (2) (NON-ILLUSTRATED)
51N	ALUM-FOIL-MUST BE USED WHEN REPLACING BODYSIDE
51C	5304534000 Frigidaire Cord
51	TRIM-VERT B/S (2)
51H	3131903 Frigidaire Door/Drawer Bumper
52	WCI 3018671
53	WCI 3018672
54	DUCT-AIR
