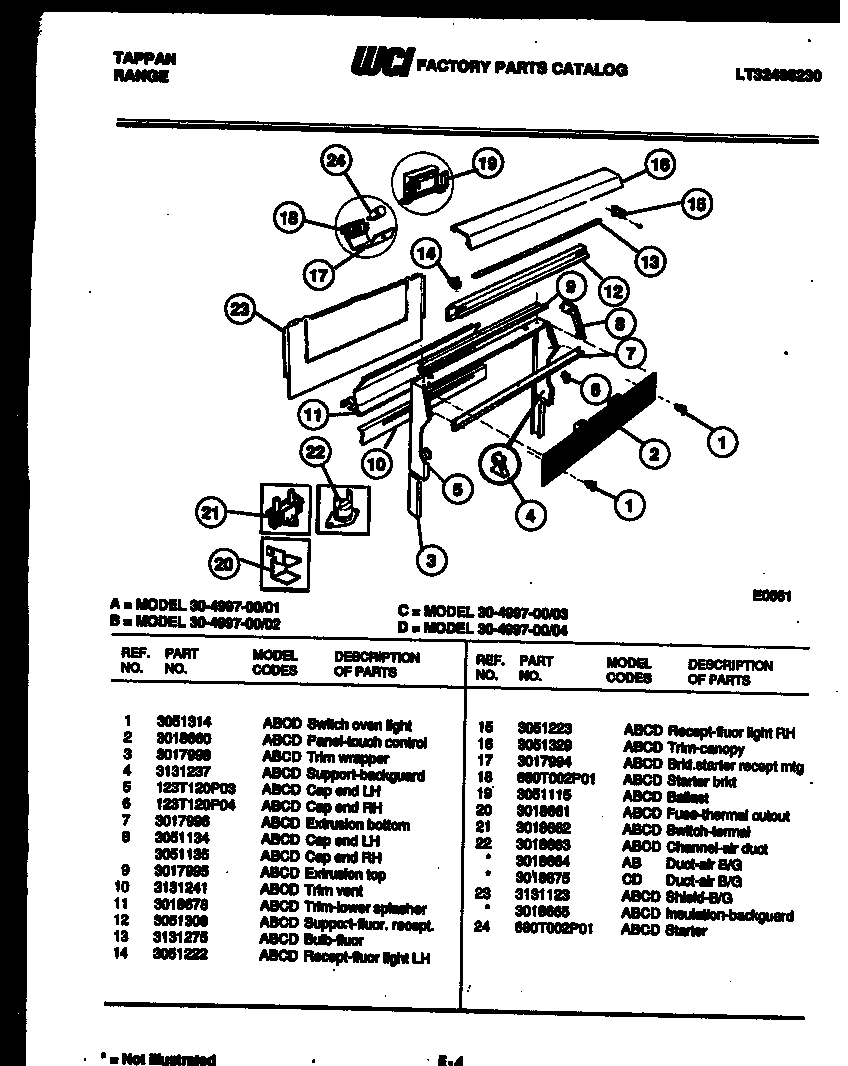

30-4997-23-02 02 – BACKGUARD

30-4997-23-02 02 – BACKGUARD

Written by

in

30-4997-23-02 02 – BACKGUARD

Products

PositionProduct
1SWITCH-LIGHT (2)
2WCI 3018660
3WCI 3017998
4SUPPORT-BACKGUARD (2)
5WCI 123T120P03
6WCI 123T120P04
7WCI 3017996
8CAP, END LH
8ACAP, END RH
9WCI 3017995
10WCI 3131241
11WCI 3018678
12SUPPORT-FLUOR RECPT
13BULB-FLUOR
14RECEPTACLE-FLU LT LH
15RECEPTACLE-FLU LT RH
16WCI 3051329
17BRACKET-STARTER MTG
19WCI 3051115
20WCI 3018661
21WCI 3018662
22WCI 3018663
22AWCI 3018664
23SHIELD-BACKGUARD,REAR WALL
23AWCI 3018665
24STARTER
