30-4997-66-04 03 – COOKTOP PARTS

30-4997-66-04 03 – COOKTOP PARTS

Written by

in

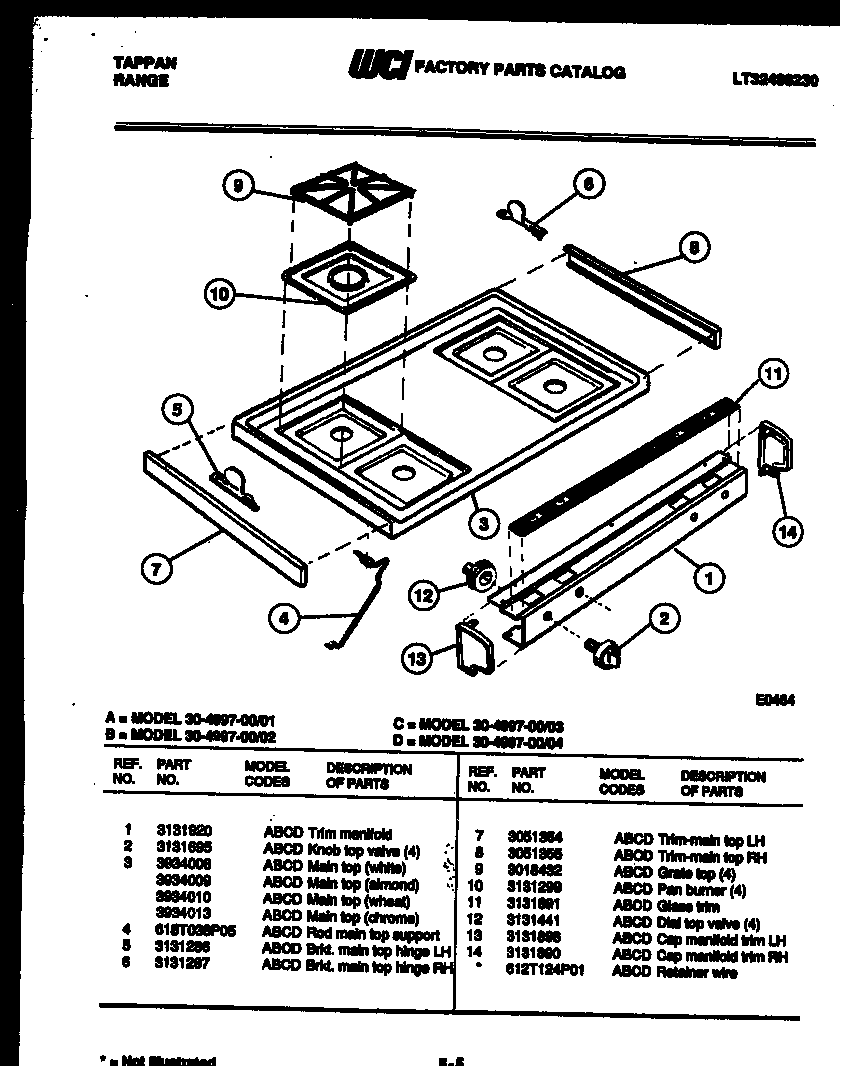

30-4997-66-04 03 – COOKTOP PARTS

Products

PositionProduct
*15041WCI 612T124P01
1TRIM MANIFOLD
2KNOB-VALVE TOP (4)
3WCI 3934010
4ROD-MAIN TOP SUPT.
5BRKT MAIN TOP HNG LH
6BRKT MAIN TOP HNG RH
7WCI 3051354
8WCI 3051355
9GRATE (4)
10WCI 3131299
11WCI 3131891
12WCI 3131441
13CAP MANIFOLD (LH)
14CAP MANIFOLD (RH)
