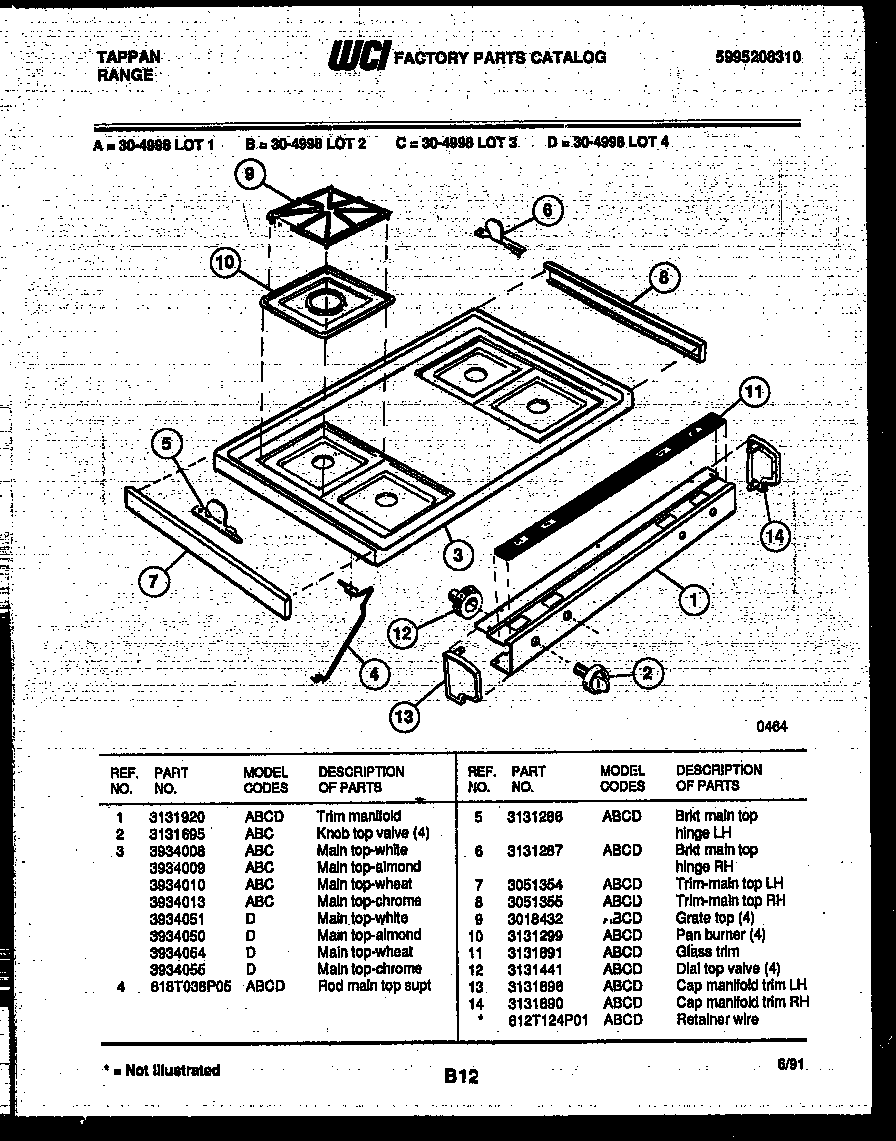

30-4998-32-03 03 – COOKTOP PARTS

30-4998-32-03 03 – COOKTOP PARTS

Written by

in

30-4998-32-03 03 – COOKTOP PARTS

Products

Position	Product
*53139	WCI 612T124P01
1	TRIM MANIFOLD
2	KNOB-VALVE TOP (4)
3	WCI 3934013
4	ROD-MAIN TOP SUPT.
5	BRKT MAIN TOP HNG LH
6	BRKT MAIN TOP HNG RH
7	WCI 3051354
8	WCI 3051355
9	GRATE (4)
10	WCI 3131299
11	WCI 3131891
12	WCI 3131441
13	CAP MANIFOLD (LH)
14	CAP MANIFOLD (RH)
