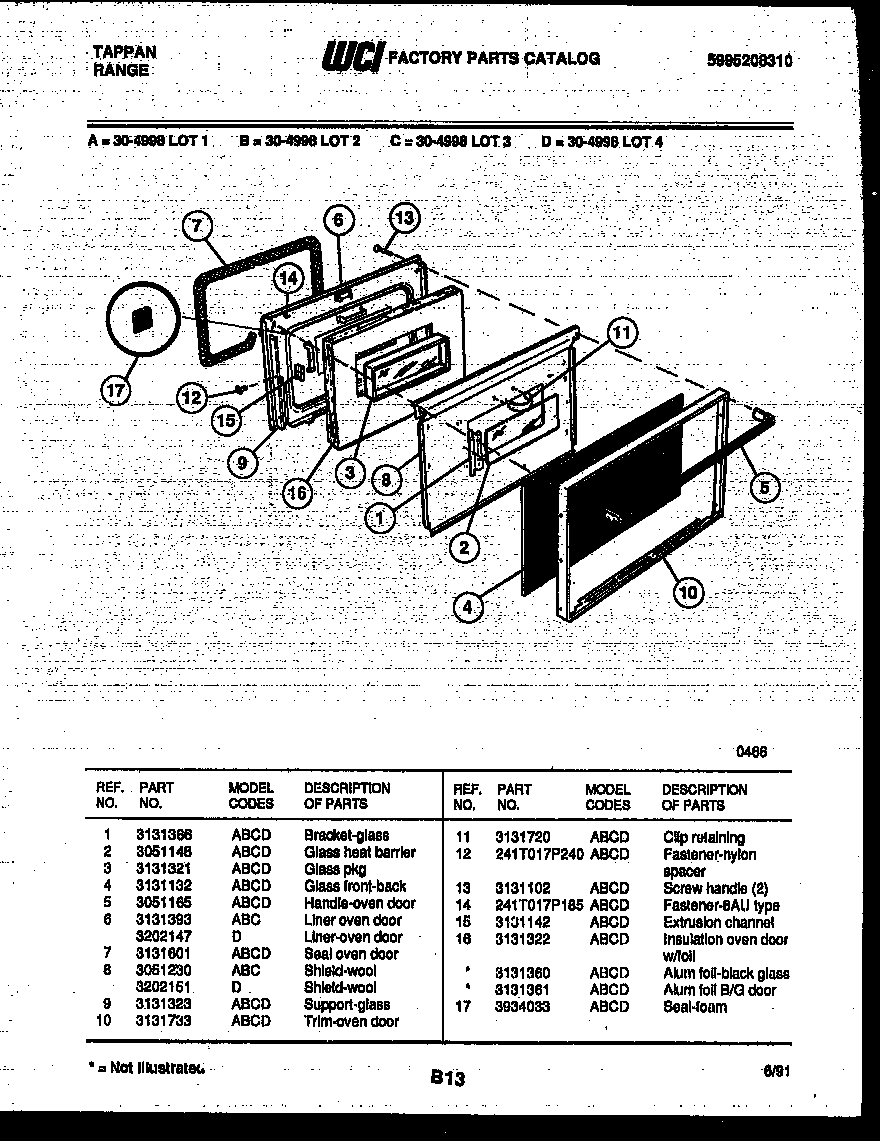

30-4998-32-04 04 – DOOR PARTS

30-4998-32-04 04 – DOOR PARTS

Written by

in

30-4998-32-04 04 – DOOR PARTS

Products

PositionProduct
1BRKT GLASS (2)
2WCI 3051148
3WCI 3131321
4GLASS FRNT
5WCI 3051165
6LINER
75303131601 Frigidaire Oven Seal
8WCI 3202151
9SUPPORT, GLASS
10WCI 3131733
11CLIP-RETAINING
12FASTNR-NYLN SPACR 3/32“ (5)
13SCREW-HANDLE
14FSTNR 8AU TYPE (3)
15EXTRUSION-CHANNL
16WCI 3131322
16BALUM FOIL-B/G GLASS
16A5303208655 Frigidaire Reflector Assembly
17SEAL, FOAM (4)
