30-4999-00-01 06 – BODY PARTS

30-4999-00-01 06 – BODY PARTS

Written by

in

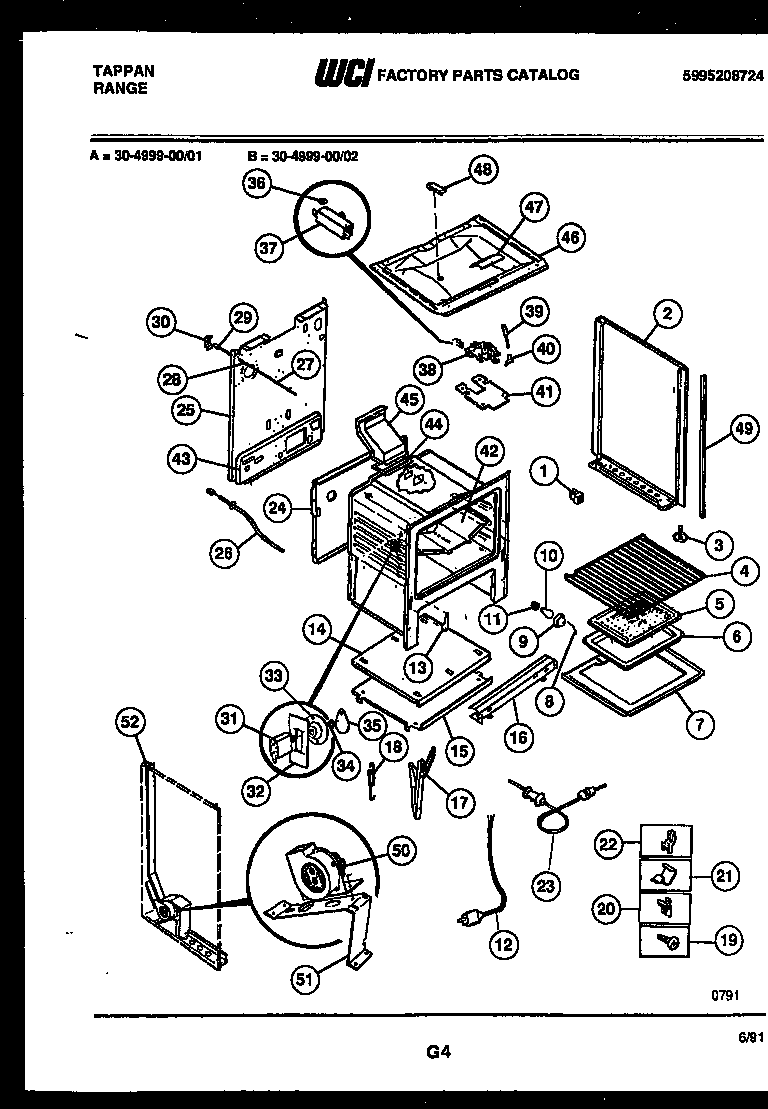

30-4999-00-01 06 – BODY PARTS

Products

PositionProduct
*27501WCI 191S018F299
*27500ANTI-TIP KIT (NOT ILLUSTRATED)
*27500SHIELD-LATCH
*27500WCI 08068018
*27500SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
1SPACER-BODYSIDE, (8)
2WCI 5303269546
2AWCI 5303269544
2APNL-B/S-RH-WHITE
2PNL-B/S-LH-WHITE
3SCREW-LEVELING
3AWCI 08010570
4316067902 Frigidaire Oven Rack
5WCI 5303131356
6PAN-BROILER
7BTTM-OVEN
8WIRE, GLASS RETAINER
95304524341 Frigidaire Lens
10316538904 Frigidaire Oven Lamp Light
11316116400 Frigidaire Oven Light Socket
125304515659 Frigidaire Oven Power Cord
13WCI 3131570
14WCI 3131951
15WCI 3131313
16SHIELD-FRONT
17WCI 316007002
183131903 Frigidaire Door/Drawer Bumper
19316282700 Frigidaire Oven Screw
203051162 Frigidaire Oven Range Front Broiler Drawer Glide
21CLIP-WIRE
225303284616 Frigidaire Range Bulb Clip Thermostat
23MEAT PROBE
24WCI 08067991
25WCI 3203082
265304497424 Frigidaire Oven Temperature Sensor Probe Kit
27WCI 3051251
28WCI 5303209316
29SWITCH-OVEN LITE DOOR
30WCI 5303131289
31RECEPTACLE-PROBE
32SHIELD-PROBE RECEPT
33PLATE-RECEPTACLE MTG
34WCI 479T069P35
35COVER-PROBE RECEPT
36FSTNR-PUSH ON
37SWITCH-LATCHING
38WCI 5303015453
39WCI 5303131357
40WCI 3203218
41SHIELD-OVN TOP
42WCI 3200836
43WCI 3131590
44316542102 Frigidaire Flue Gasket
45WCI 3131931
46WCI 3011597
47WCI 08067757
48WCI 3015371
49G08067973 Frigidaire 0 Insulation
49JWCI 3200883
49CWCI 08067961
49HINSULATION OVEN BACK (NON-ILLUSTRATED)
49AWCI 08067992
49DSHIELD-LATCH (NON-ILLUSTRATED)
49IINSULATION, OVEN TOP
49F316064600 Frigidaire Oven Support
49EWCI 08013188
49BSTUD SPACER (2) (NON-ILLUSTRATED)
49TRIM – VERTICAL B/S (2)
50WCI 3018671
51WCI 3018672
52DUCT-AIR
