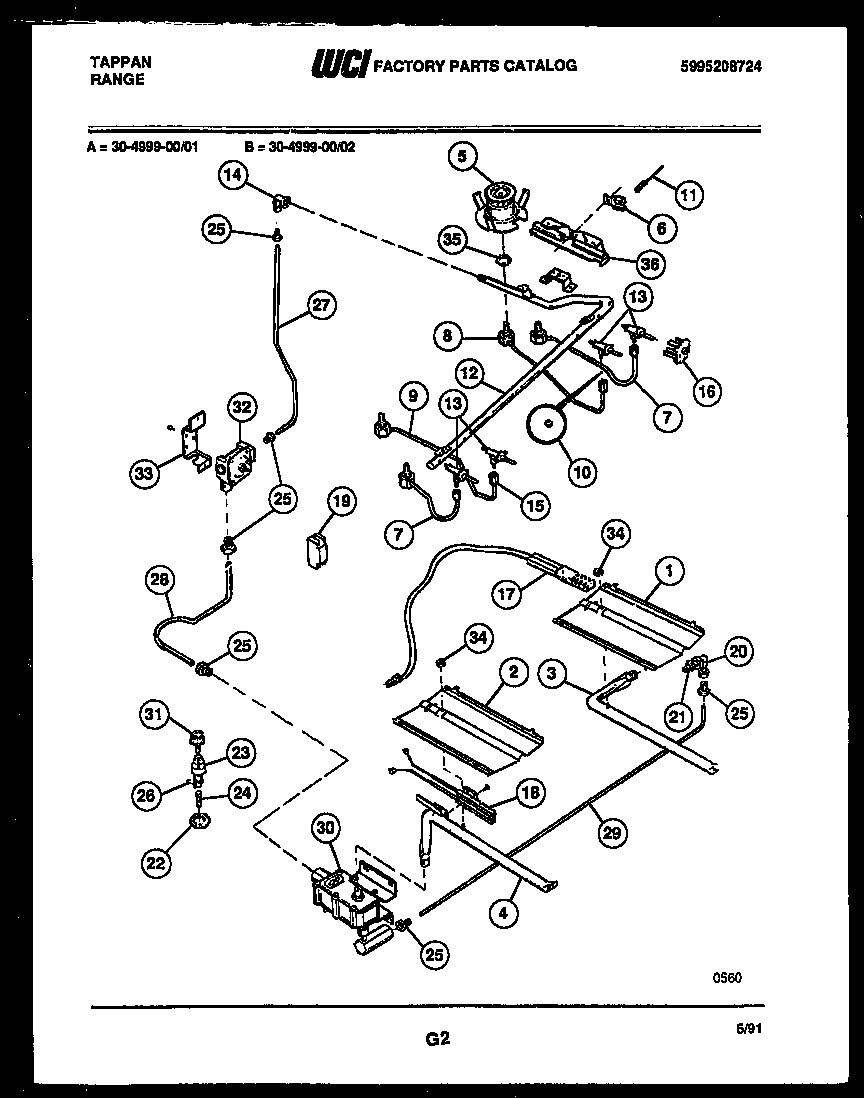

30-4999-08-01 05 – BURNER PARTS

30-4999-08-01 05 – BURNER PARTS

Written by

in

30-4999-08-01 05 – BURNER PARTS

Products

PositionProduct
*27489WCI 3051420
1WCI 3131283
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
5BURNER TOP (4)
6WCI 3018617
7BURNER TUBE-RF & LF
8WCI 3011569
9WCI 5303011570
10WCI 3012358
11IGNITER-TOP BURNER (4)
12WCI 3131440
13WCI 3017846
14ELBOW 1/2 NP TO 9/16-24
15NUT COMPRESSN (4)
16316035200 Frigidaire Ignition Switch
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20WCI 08067979
21NUT
22NUT FUSE
23WCI 3018863
24FUSE 5A 250V
25FITTING-LOXIT (8)
26WCI 08067984
27TUBE-REGUL TEE
28TUBE ALUM 3/8
29TUBE-VALVE TO MIXER ELBOW
305303208499 Frigidaire Safety Gas Valve
31CAP FUSE
325303935125 Frigidaire Pressure Regulator
33316091600 Frigidaire Oven Bracket
345303013272 Frigidaire Oven Nut
35NUT, SPECIAL
36WCI 3206267
