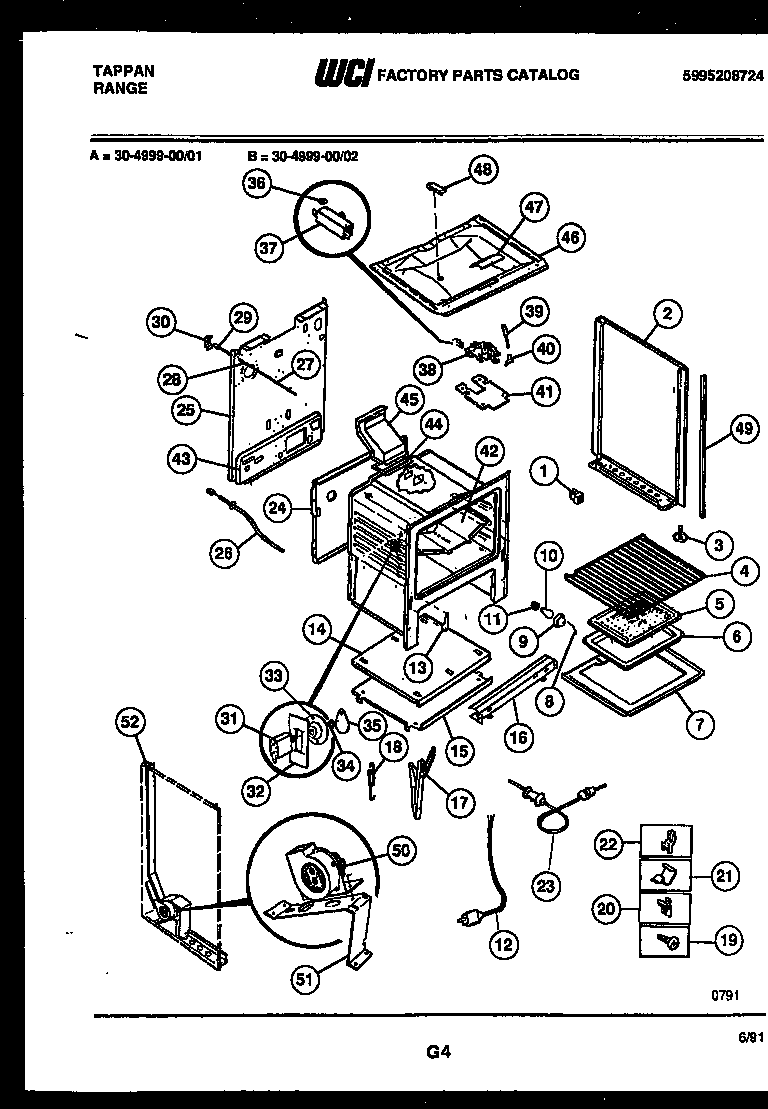

30-4999-08-02 06 – BODY PARTS

Products

Position	Product
*27501	WCI 19100200013
*27500	SHIELD-LATCH
*27500	WCI 08068018
*27500	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*27500	ANTI-TIP KIT (NOT ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
2A	WCI 5303269544
2	WCI 5303269546
3A	WCI 08010570
3	SCREW-LEVELING
4	316067902 Frigidaire Oven Rack
5	WCI 5303131356
6	PAN-BROILER
7	BTTM-OVEN
8	WIRE, GLASS RETAINER
9	5304524341 Frigidaire Lens
10	316538904 Frigidaire Oven Lamp Light
11	316116400 Frigidaire Oven Light Socket
12	5304515659 Frigidaire Oven Power Cord
13	WCI 3131570
14	SHIELD-HEAT UPPER
15	WCI 3131313
16	SHIELD-FRONT
17	WCI 316007002
18	3131903 Frigidaire Door/Drawer Bumper
19	316282700 Frigidaire Oven Screw
20	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
21	CLIP-WIRE
22	5303284616 Frigidaire Range Bulb Clip Thermostat
23	MEAT PROBE
24	WCI 08067991
25	WCI 3203082
26	5304497424 Frigidaire Oven Temperature Sensor Probe Kit
28	WCI 5303209316
29	SWITCH-OVEN LITE DOOR
30	WCI 5303131289
31	RECEPTACLE-PROBE
32	SHIELD-PROBE RECEPT
33	PLATE-RECEPTACLE MTG
34	WCI 479T069P35
35	COVER-PROBE RECEPT
36	FSTNR-PUSH ON
37	SWITCH-LATCHING
38	WCI 5303015453
39	WCI 5303131357
40	WCI 3203218
41	SHIELD-OVN TOP
42	WCI 3200836
43	WCI 5303269502
44	316542102 Frigidaire Flue Gasket
45	WCI 3131931
46	WCI 3011597
47	WCI 08067757
48	WCI 3015371
49A	WCI 08067992
49C	WCI 08067961
49H	INSULATION OVEN BACK (NON-ILLUSTRATED)
49	TRIM - VERTICAL B/S (2)
49G	08067973 Frigidaire 0 Insulation
49E	WCI 08013188
49D	SHIELD-LATCH (NON-ILLUSTRATED)
49F	316064600 Frigidaire Oven Support
49B	STUD SPACER (2) (NON-ILLUSTRATED)
49I	INSULATION, OVEN TOP
49J	WCI 3200883
50	WCI 3018671
51	WCI 3018672
52	DUCT-AIR
