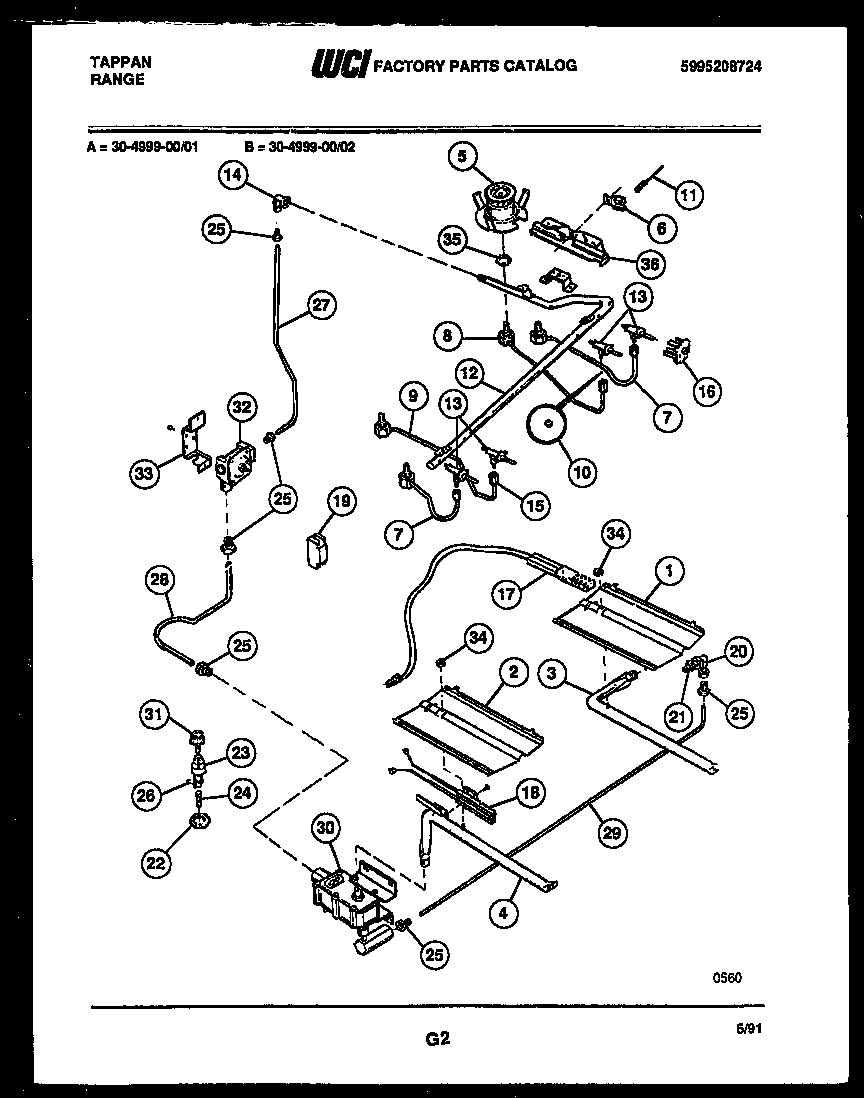

30-4999-23-02 05 – BURNER PARTS

30-4999-23-02 05 – BURNER PARTS

Written by

in

30-4999-23-02 05 – BURNER PARTS

Products

PositionProduct
*27489WCI 3051420
*27489316048200 Frigidaire Oven Screw
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
5BURNER TOP (4)
6WCI 3018617
7BTUBE-BURNER, LF
7ATUBE-BURNER, RF
8TUBE-BURNER, RR
9TUBE-BURNER, LR
11IGNITER-TOP BURNER (4)
12WCI 5303271924
13VALVE TOP-3 POS
16316035200 Frigidaire Ignition Switch
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20WCI 08067979
21NUT
22NUT FUSE
23WCI 3018863
24FUSE 5A 250V
26WCI 08067984
27TUBE-ALUM 3/8 REG/MANIFOLD PIPE
28TUBE-VALVE TO REGUL
29TUBE-VALVE TO MIXER ELBOW
305303208499 Frigidaire Safety Gas Valve
31CAP FUSE
325303935125 Frigidaire Pressure Regulator
33316091600 Frigidaire Oven Bracket
345303013272 Frigidaire Oven Nut
35NUT, SPECIAL
36WCI 3206267
