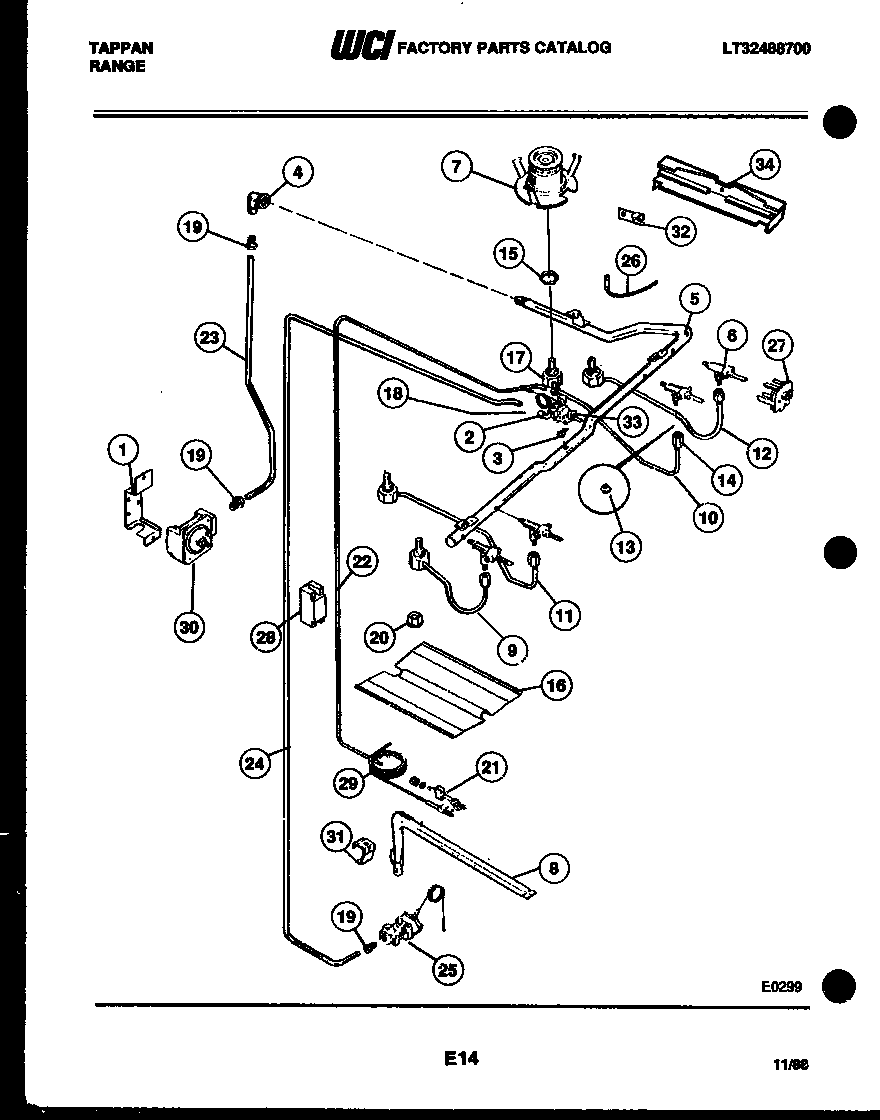

30-6238-00-02 06 – BURNER PARTS

Products

Position	Product
*19910	WCI 3051420
1	WCI 072T850F01
2	WCI 722T073P01
3	WCI 003T039P01
4	ELBOW 1/2 NP TO 9/16-24
5	WCI 439T055P07
6	WCI 3017542
7	WCI 079T032S02
8	WCI 3131571
9	WCI 079T033H01
10	WCI 079T033H02
11	WCI 079T033H03
12	WCI 079T033H04
13	WCI 247T074P01
14	NUT COMPRESSN (4)
15	NUT SPECIAL
16	WCI 3131327
17	WCI 3131404
18	WCI 3131403
19	FITTING-LOXIT (8)
20	5303013272 Frigidaire Oven Nut
21	PILOT, OVEN
22	TUBE, OVEN PILOT, 3/16
23	TUBE-REGUL TEE
24	WCI 750T085H13
25	WCI 3131405
26	IGNITER-TOP BURNR (4)
27	IGN.-SWITCH
28	5303200332 Frigidaire Oven Module
29	WCI 3131604
30	CONTROL, REGULATOR
31	WCI 072T821F01
32	RETAINER ELECTROS
33	WCI 695T220P01
34	WCI 136T355W03
