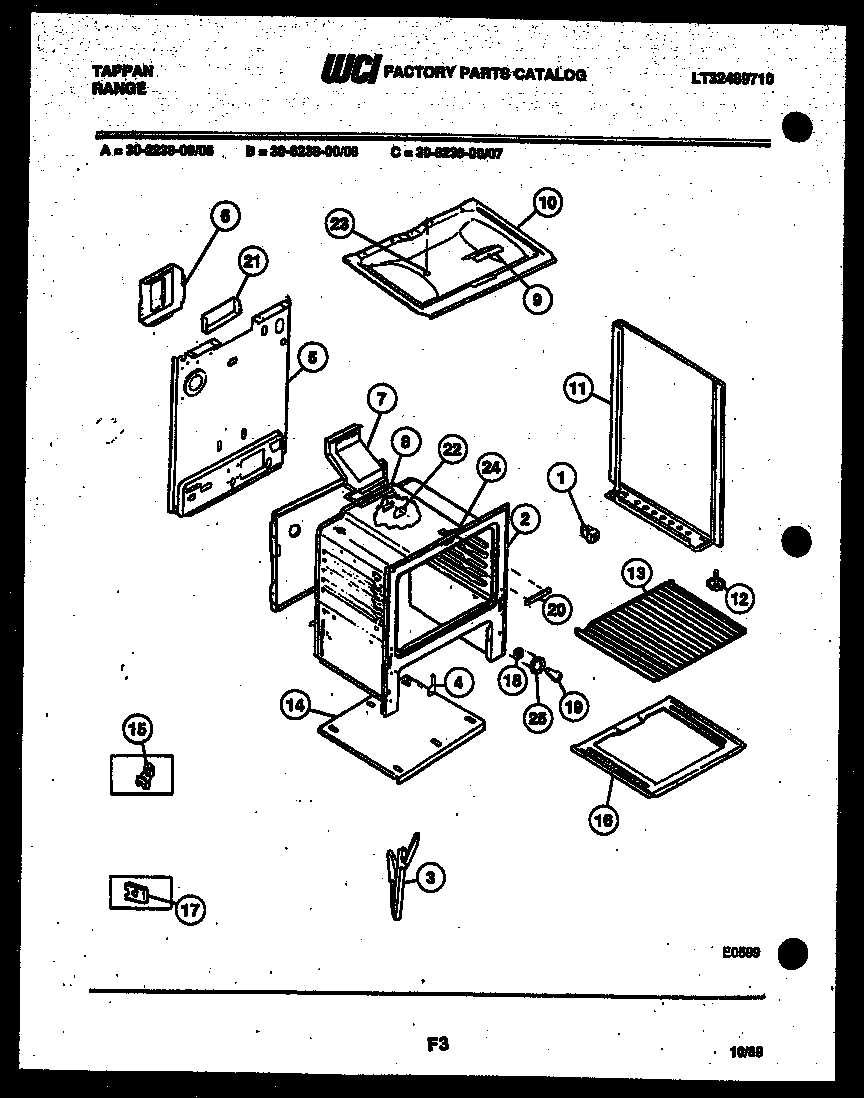

30-6238-00-06 07 – BODY PARTS

Products

Position	Product
*39732	ANTI-TIP KIT (NOT ILLUSTRATED)
3	CHANL-DR HNG (2)
4	WCI 3131570
5	WCI 3131567
6	WCI 3131660
7	WCI 3131904
8	316542102 Frigidaire Flue Gasket
9	WCI 3131101
10	WCI 3011597
11	B/S-RH-(WHITE)
11A	B/S-LH-(WHITE)
12	SCREW-LEVELING
13	316067902 Frigidaire Oven Rack
14	BTTM-OVEN
14B	WCI 3131246
14A	INSULATION, OVEN WRAPPER
15B	316064600 Frigidaire Oven Support
15A	3131903 Frigidaire Door/Drawer Bumper
15	5303284616 Frigidaire Range Bulb Clip Thermostat
16	WCI 3131180
17A	5304515659 Frigidaire Oven Power Cord
17	3203010 Frigidaire Clip
17B	FSTNR PWR CORD (2) (NON-ILLUSTRATED)
18	316116400 Frigidaire Oven Light Socket
19	BULB
20	COVER FRNT MAIN (NON-ILLUSTRATED)
20A	316282700 Frigidaire Oven Screw
21	WCI 3131348
22A	COVER-POWER CORD, (NON-ILLUSTRATED)
22	COVER-IGNITOR
23	WCI 3015371
24A	PLATE-OV. LT MTG (NON-ILLUSTRATED)
24	COVER-BURNER BOX
