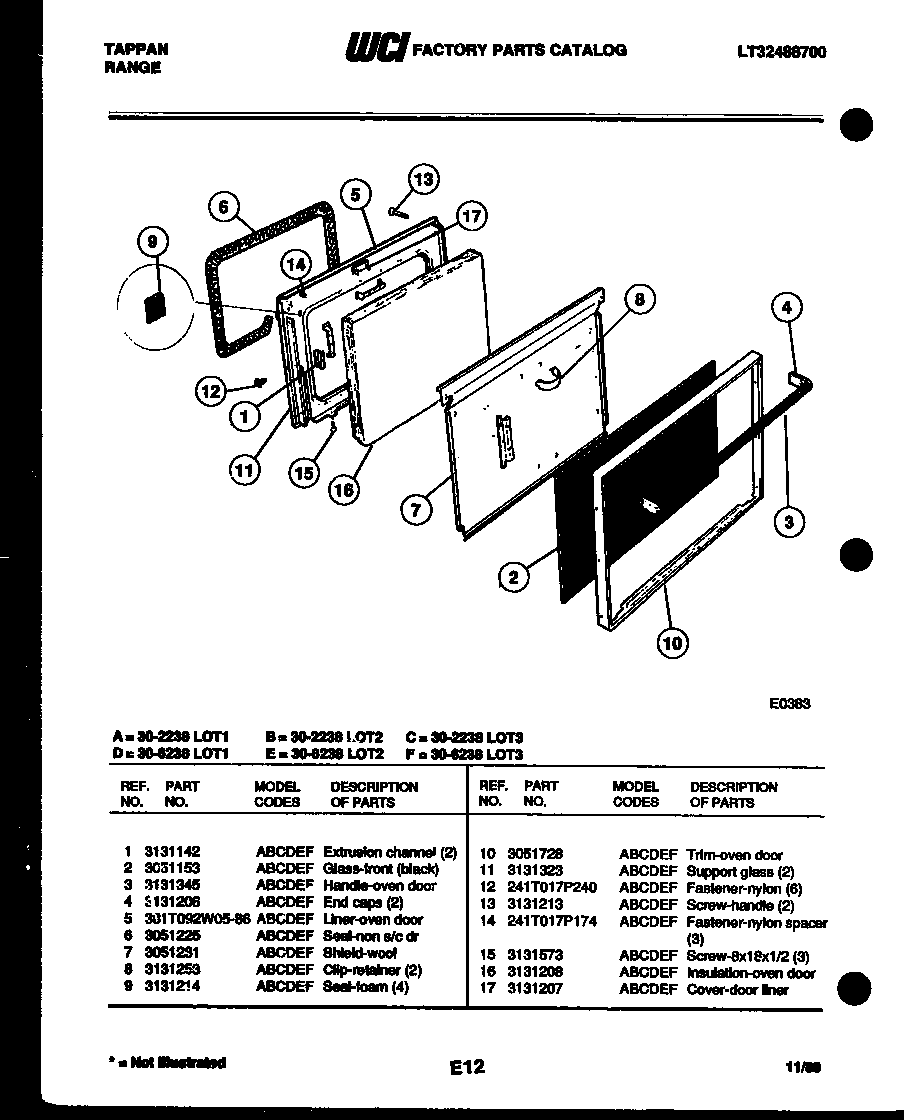

30-6238-23-02 04 – DOOR PARTS

Products

Position	Product
1	EXTRUSION-CHANNL
2	GLASS-FRONT BLACK
3	HANDLE
4	316137003 Frigidaire Range / Cooktop End Cap
5	LINER, OVEN DOOR
6	5303202011 Frigidaire Door Seal
7	WCI 3051231
8	WCI 3131253
9	SEAL, FOAM (4)
10	WCI 3051728
11	SUPPORT, GLASS
12	FASTNR-NYLN SPACR 3/32`` (5)
13	SCREW HANDL (2)
14	FASTNR-NYLON PUSH-IN SPACR (5)
15	SCREW DOOR MTG
16	INSUL. OVEN DR
17	COVER DOOR LINER (NON-ILLUSTRATED)
