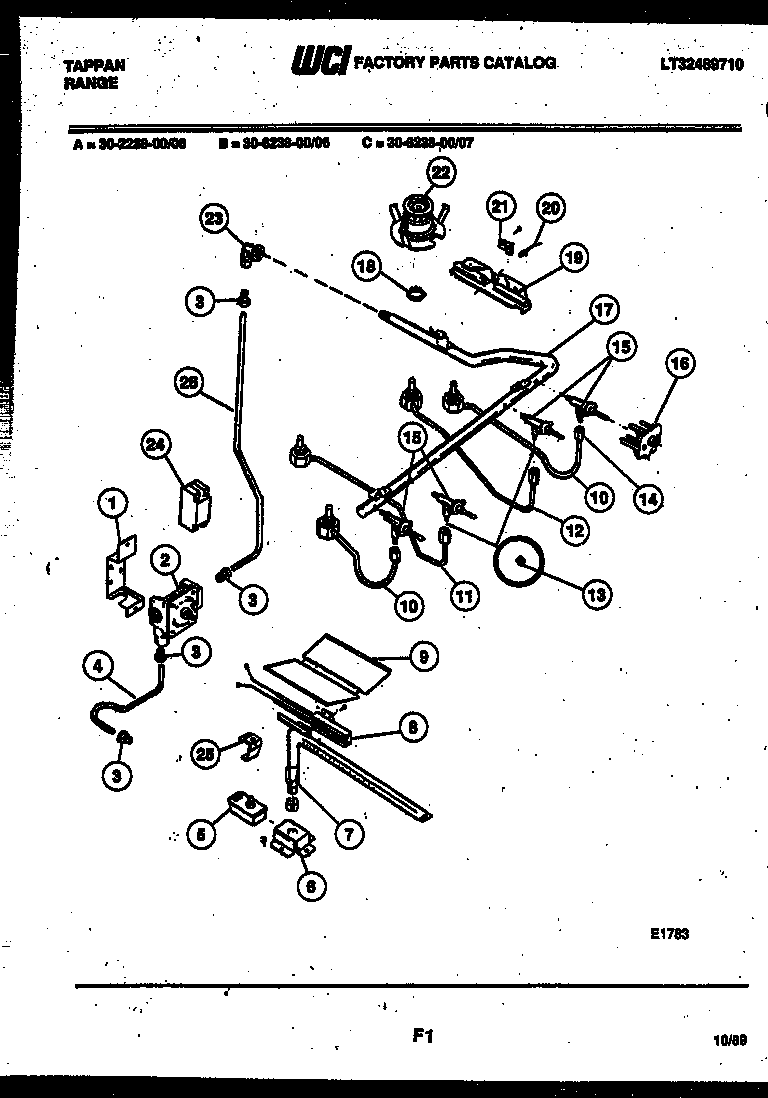

30-6238-66-07 06 – BURNER, MANIFOLD AND GAS CONTROL

30-6238-66-07 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

30-6238-66-07 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*39726WCI 3051420
1316091600 Frigidaire Oven Bracket
25303935125 Frigidaire Pressure Regulator
3FITTING-LOXIT (8)
4TUBE – ALUM 3/8
53203459 Frigidaire Oven Range Dual Gas Safety Valve
6BRKT.-VALVE
7WCI 3131439
85303935066 Frigidaire Oven Flat Igniter 17" Leads
9WCI 3131327
10BURNER TUBE-RF & LF
11WCI 3011570
12WCI 3011569
13WCI 3012358
14NUT COMPRESSN (4)
15WCI 3017542
16SWITCH-IGNITER (4)
17WCI 3201106
18NUT, SPECIAL
19WCI 136T355W03
20IGNITER-TOP BURNER (4)
21WCI 3018617
22BURNER TOP (4)
23ELBOW 1/2 NP TO 9/16-24
245303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
25WCI 3018603
26TUBE-REGUL TEE
