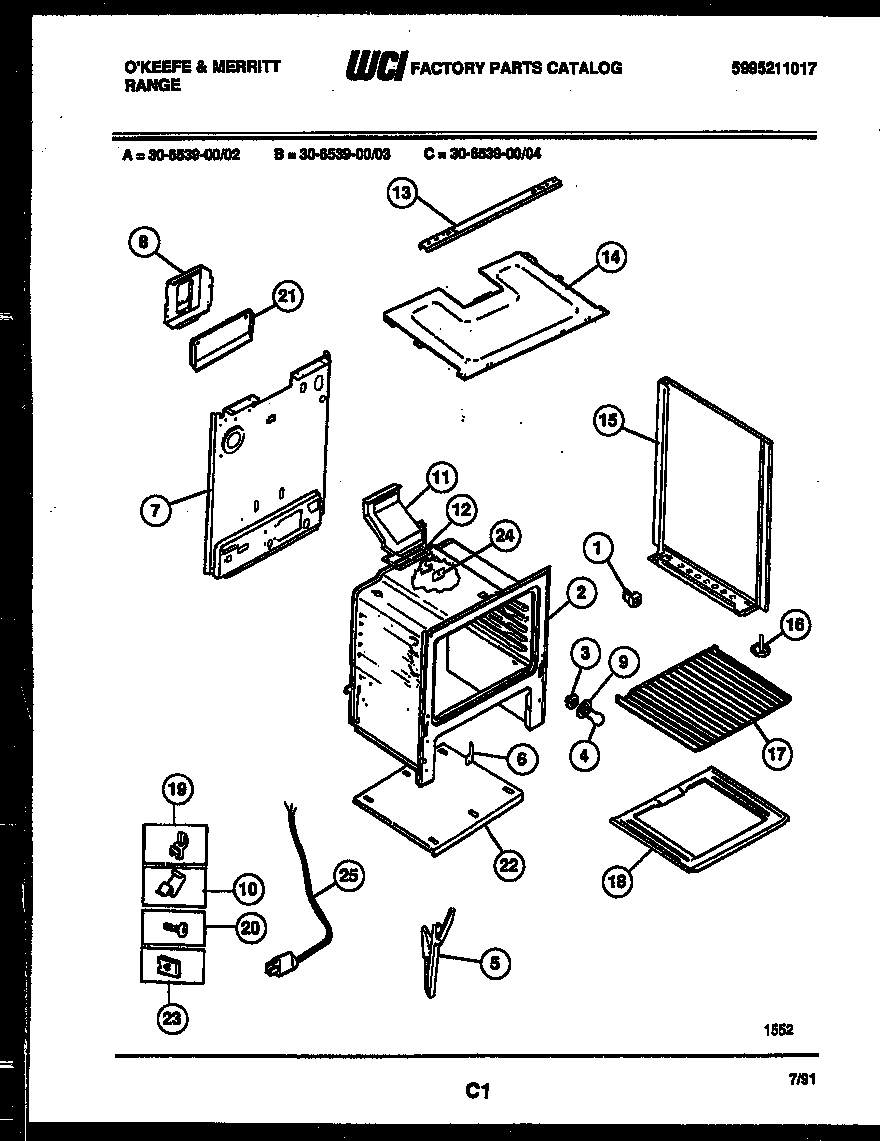

30-6539-00-02 07 – BODY PARTS

Products

PositionProduct
*57314WCI 3131252
*57314DIAGRAM, WIRING (NOT FOR PURCHASE)
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5WCI 316007002
6WCI 3131570
7WCI 3203082
8WCI 3131660
9WCI 3051511
10316282700 Frigidaire Oven Screw
11WCI 3131904
12316542102 Frigidaire Flue Gasket
13CHANNEL-BURNER BOX
14BURNER BOX BOTTOM
15WCI 5303269543
15PNL-B/S-RH-WHITE
15APNL-B/S-LH-WHITE
15AWCI 5303269545
16AWCI 08010570
16SCREW-LEVELING
17316067902 Frigidaire Oven Rack
18AINSULATION, OVEN WRAPPER
18BINSUL – OVEN BACK (NON-ILLUSTRATED)
18BTTM-OVEN
19AWCI 08067961
195303284616 Frigidaire Range Bulb Clip Thermostat
20316539800 Frigidaire Oven Retainer
21WCI 3131348
21A3131903 Frigidaire Door/Drawer Bumper
21B316064600 Frigidaire Oven Support
22BCOVER-POWER CORD, (NON-ILLUSTRATED)
22WCI 5303270160
22AANTI-TIP KIT (NOT ILLUSTRATED)
23ACOVER-OVEN FRONT
233203010 Frigidaire Clip
24COVER-IGNITOR
24ASHIELD-FLUE, (NON-ILLUSTRATED)
24BSHIELD-TOP (NON-ILLUSTRATED)
255304515659 Frigidaire Oven Power Cord
