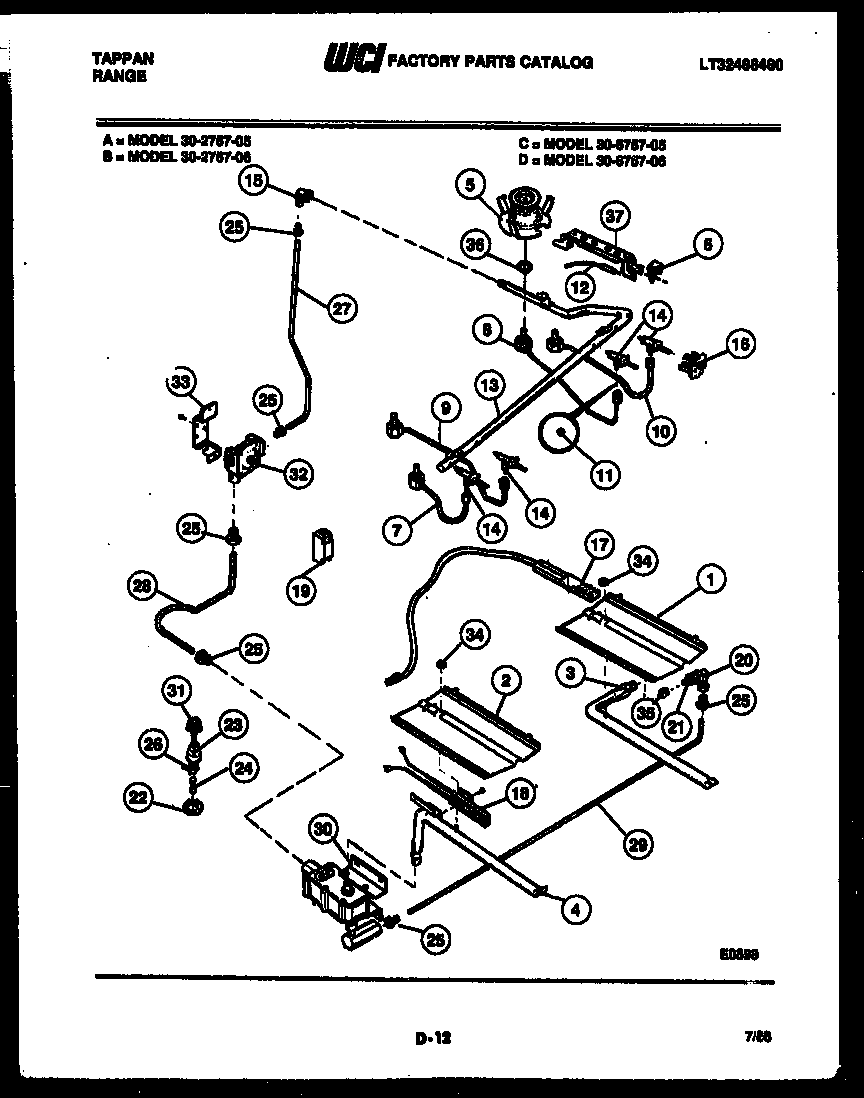

30-6757-00-05 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
*16588	WCI 3051420
1	WCI 3131283
2	BAFFLE-OVN BURNER
3	WCI 079T028P01
4	WCI 3131290
5	WCI 079T032S02
6	RETAINER IGNITER
7	WCI 079T033H01
8	WCI 079T033H02
9	WCI 079T033H03
10	WCI 079T033H04
11	WCI 247T074P01
12	IGNITER-TOP BURNR (4)
13	MANIFOLD, PIPE
14	WCI 774T135P01
15A	NUT COMPRESSN (4)
15	ELBOW 1/2 NP TO 9/16-24
16	SWITCH-IGNITER (4)
17	5303935068 Frigidaire Flat Igniter
18	5303935066 Frigidaire Oven Flat Igniter 17" Leads
19	5304505695 Frigidaire Oven Module
20	WCI 455T008P02
21	NUT
22	NUT FUSE
23	SEAL ``O``RING
24	FUSE, BUSS
25	FITTING-LOXIT (8)
26	RECEPTICLE FUSE
27	TUBE-REGUL TEE
28	TUBE-VALVE TO REGUL
29	TUBE-VALVE TO MIXER ELBOW
30	5303208499 Frigidaire Safety Gas Valve
30A	5300809968 Frigidaire Dishwasher P-1 Washer
31	CAP FUSE
32	5303935125 Frigidaire Pressure Regulator
33	316091600 Frigidaire Oven Bracket
34	5303013272 Frigidaire Oven Nut
35	SPUD-50
36	NUT SPECIAL
36A	WCI 3200612
37	WCI 072T839F02
