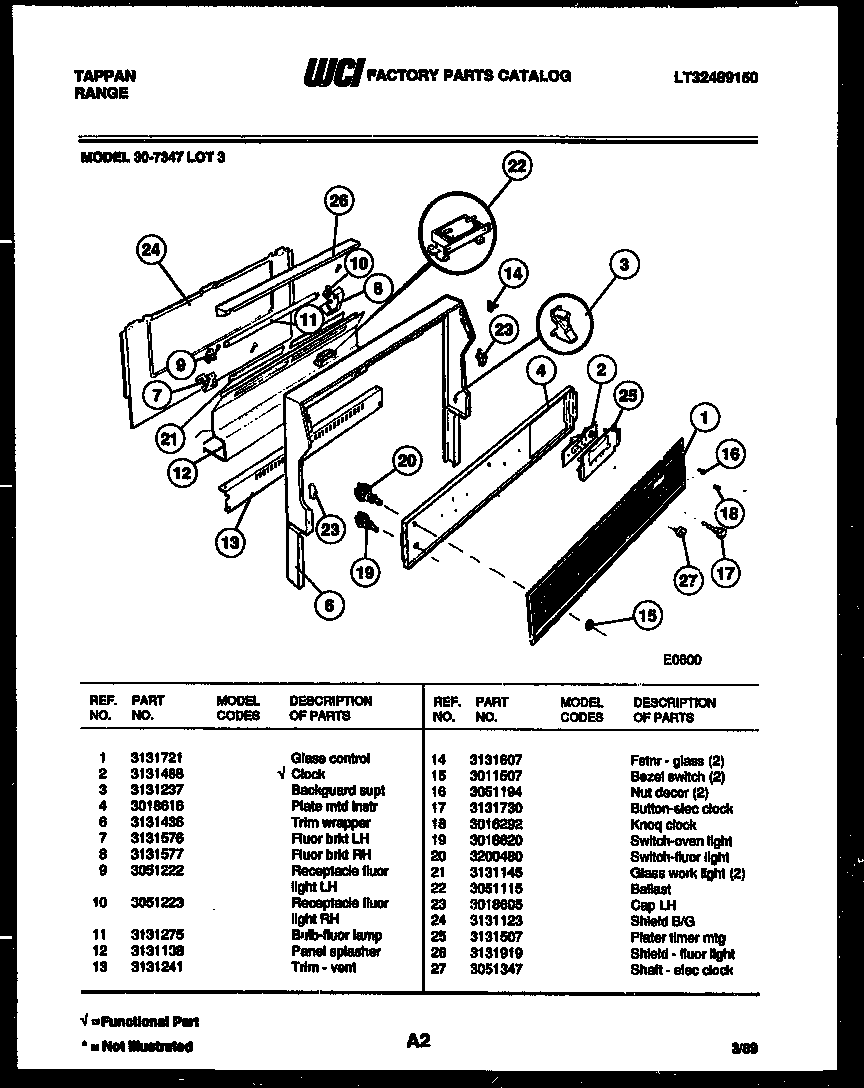

30-7347-23-03 02 – BACKGUARD – Aparts

30-7347-23-03 02 – BACKGUARD

Products

Position	Product
1	CONTROL - GLASS
2	WCI 3131488
3	SUPPORT-BACKGUARD (2)
4	PLATE INSTR MOUNTING
6	WCI 3131436
7	BRKT-FLUOR LT MTG LH
8	BRKT-FLUOR LT MTG RH
9	RECEPTACLE-FLU LT LH
10	RECEPTACLE-FLU LT RH
11	BULB-FLUOR
12	PANEL SPLASHER
13	WCI 3131241
14	FASTENER, GLASS (2)
15	BEZEL - SWITCH (2)
16	NUT - DECOR (2)
17	WCI 3131730
18	WCI 3016292
19	WCI 3018620
20	SWITCH-FLUOR LIGHT
21	GLASS-WORK LITE (2)
22	WCI 3051115
23	CAP-RH
24	SHIELD-BACKGUARD,REAR WALL
25	WCI 3131507
26	WCI 3131919
27	SHAFT-ELEC. CLK.
