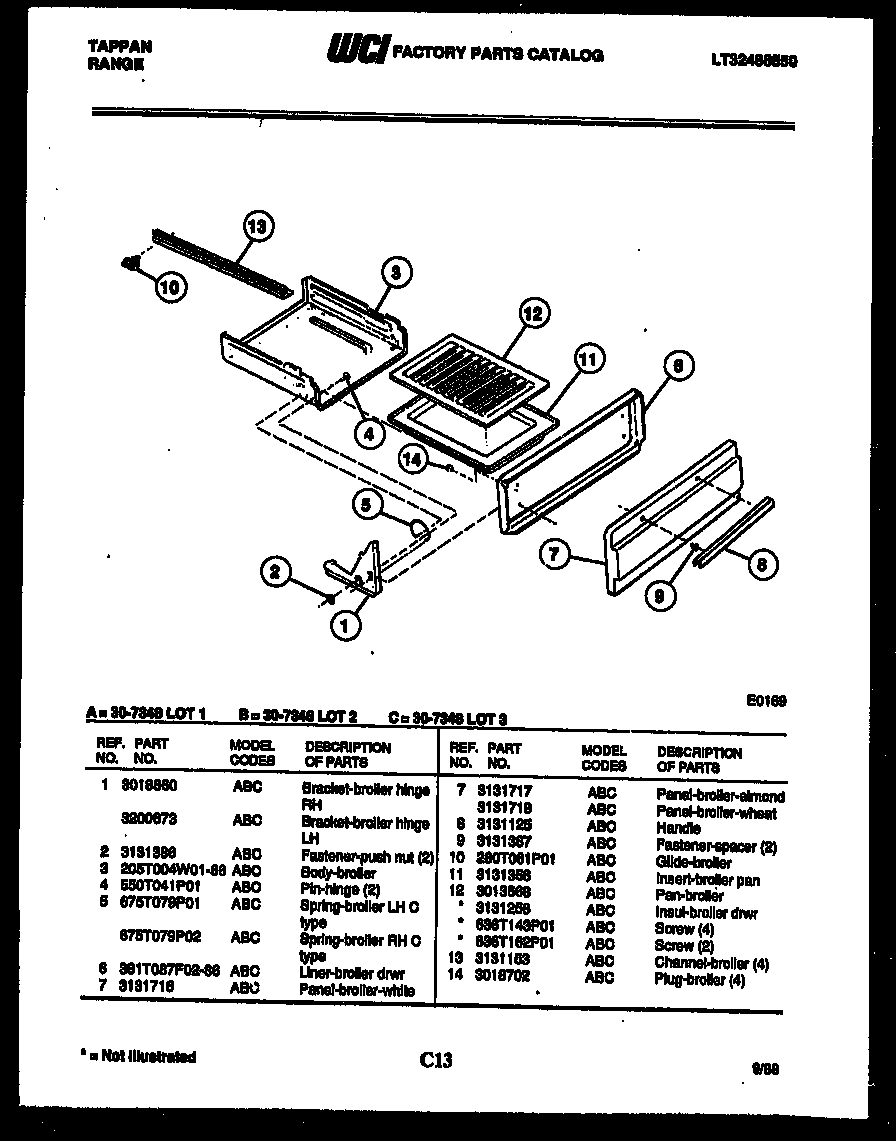

30-7348-00-01 07 – BROILER DRAWER PARTS

Products

Position	Product
1	WCI 3018860
1A	WCI 3200673
2	WCI 3131386
3	BODY, BROILER
4	PIN, HINGE (2)
5A	SPRING-BROILR RH C-TYPE
5	SPRING-BROILR LH C-TYPE
6	LINER (BROILR DRWR)
7	PANEL BROILR-(ALMOND)
7	PANEL BROILR-(WHITE)
7	PANEL BROILR (WHEAT)
8	WCI 3131125
9	FSTNR, SPACER (2)
10	GLIDE – BROILER
11	WCI 3131356
12C	SCREW PNL ASSY (2)
12A	INSUL, BRL, DRWR (NON-ILLUSTRATED)
12	WCI 3013568
12B	5303300265 Frigidaire Oven Screw
13	WCI 3131153
14	WCI 3018702
