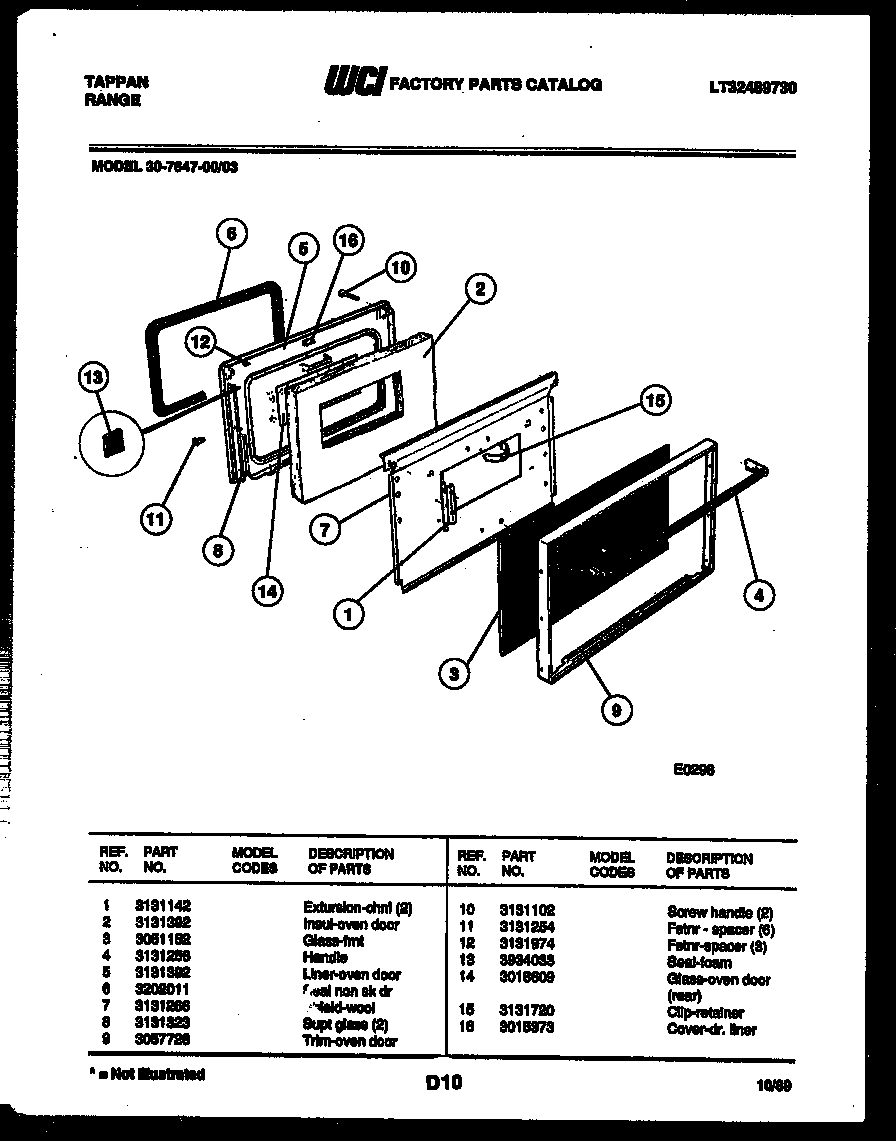

30-7647-00-03 05 – DOOR PARTS – Aparts

30-7647-00-03 05 – DOOR PARTS

Products

Position	Product
1	EXTRUSION-CHANNL
3	GLASS-OVEN DOOR, BLACK, OUTER
4	WCI 3131256
5	LINER - OVEN DOOR
6	5303202011 Frigidaire Door Seal
7	WCI 3131266
8	SUPPORT, GLASS
9	WCI 3057728
10	SCREW-HANDLE
11	CLIP
12	FSTNR. SPACER (6)
13	SEAL, FOAM (4)
14	GLASS-OV DR (REAR)
15	CLIP-RETAINING
16	WCI 3015373
