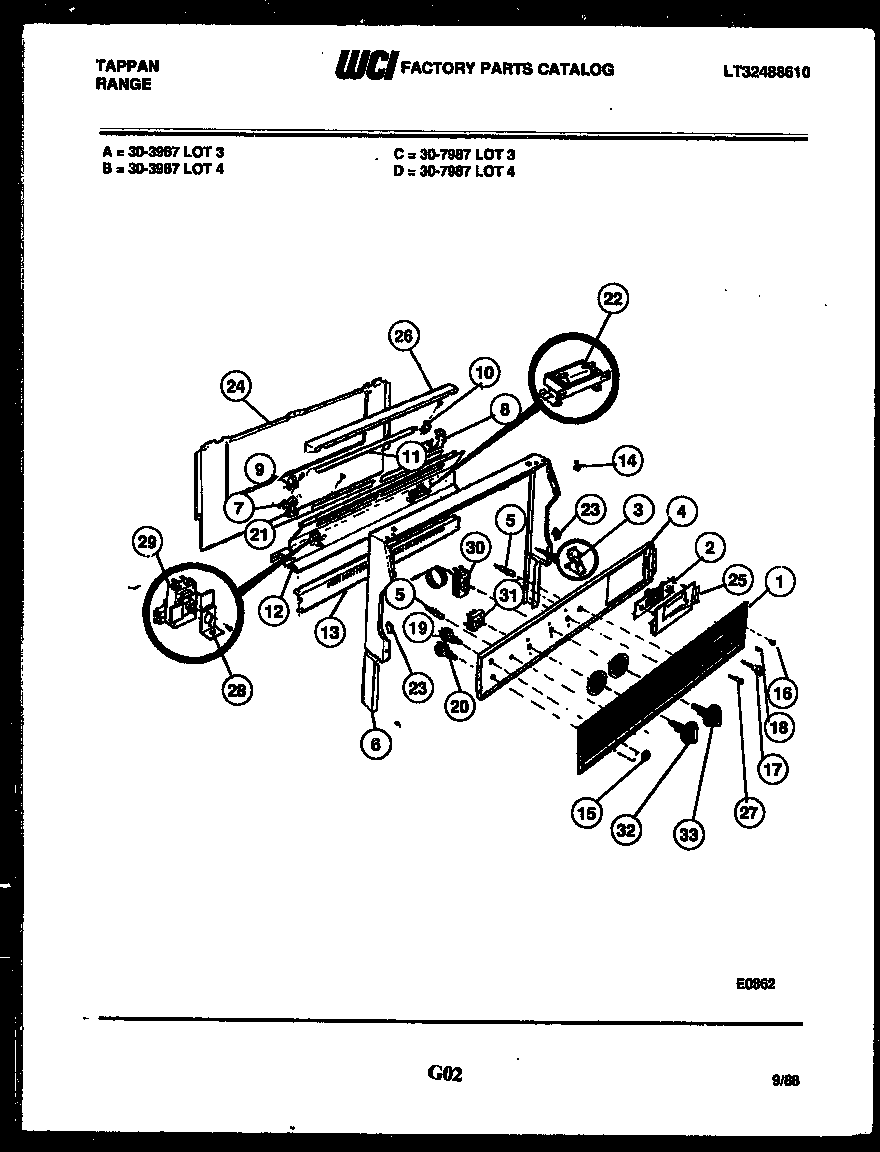

30-7987-23-03 02 – BACKGUARD – Aparts

30-7987-23-03 02 – BACKGUARD

Products

Position	Product
*18472	ANGLE LIGHT SWITCH
1	WCI 3131729
2	WCI 3131722
3	SUPPORT-BACKGUARD (2)
4	PLATE INSTRUMENT MOUNTING
5	INDICATOR LIGHT (4)
6	WCI 3131436
7	BRKT-FLUOR LT MTG LH
8	BRKT-FLUOR LT MTG RH
9	RECEPTACLE-FLU LT LH
10	RECEPTACLE-FLU LT RH
11	BULB-FLUOR
12	PANEL SPLASHER
13	WCI 3131241
14	FSTNR-GLASS(2)
15	WCI 045T071P01
16	NUT - DECOR (2)
17	BTN.-ELEC. CLK. (4)
18	WCI 358T206P01
19	SWITCH-OV LT
20	SW.-FLUOR. LT.
21	GLASS-WORK LITE (2)
22	WCI 3051115
23	WCI 123T120P03
23A	WCI 123T120P04
24	SHIELD-BACKGUARD,REAR WALL
25	WCI 3131556
26	SHIELD-FLUOR LT.
27	SHAFT-ELEC. CLK.
28	ANGLE-S/C THERM. MTG
29	WCI 722T071P01
30	THERMO-OVEN
31	SWITCH SELECTOR 5 POS.
32	KNOB-SEL. SW.
33	WCI 3131725
