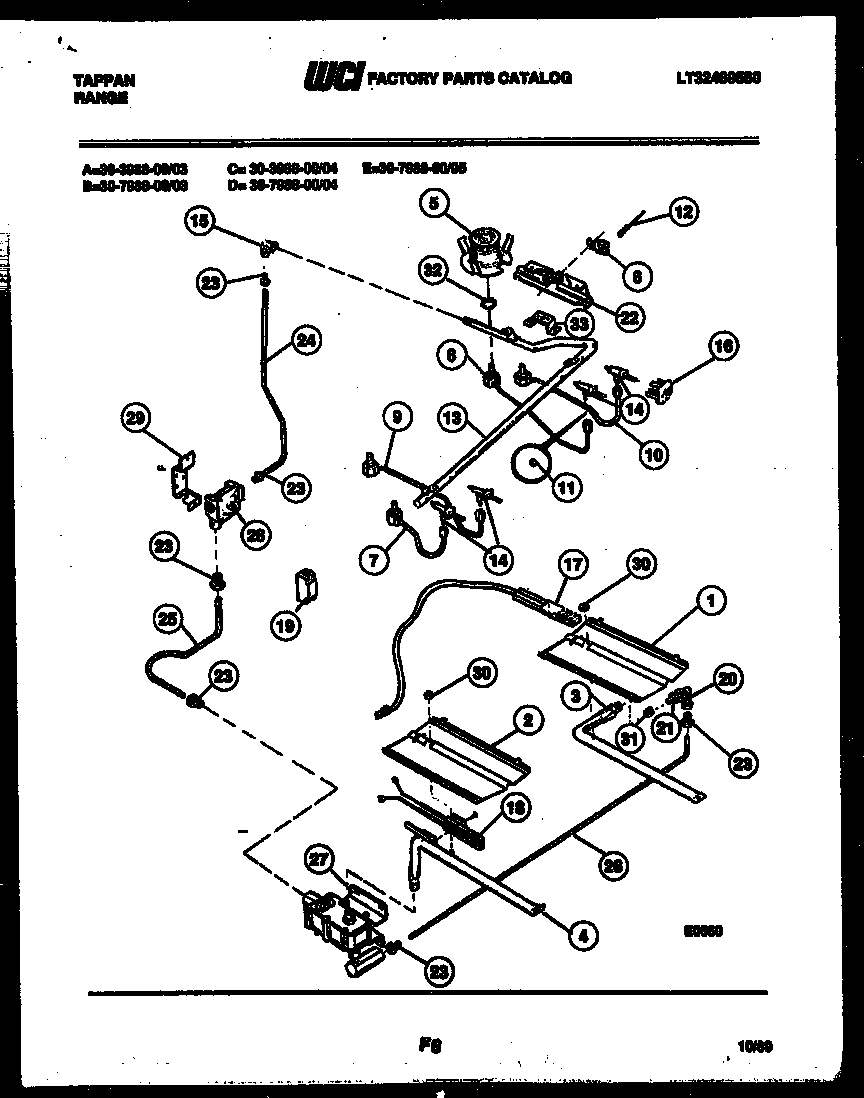

30-7988-00-05 05 – BURNER, MANIFOLD AND GAS CONTROL

30-7988-00-05 05 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

30-7988-00-05 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*33659WCI 3051420
1WCI 3131283
2BAFFLE-OVN BURNER
3WCI 079T028P01
4WCI 3131290
5WCI 079T032S02
6WCI 3018617
7WCI 079T033H01
8WCI 079T033H02
9WCI 079T033H03
10WCI 079T033H04
11WCI 247T074P01
12IGNITER-TOP BURNER (4)
13MANIFOLD, PIPE
14WCI 3017846
15ELBOW 1/2 NP TO 9/16-24
15ANUT COMPRESSN (4)
16316035200 Frigidaire Ignition Switch
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20WCI 455T008P02
21NUT
22WCI 1367355
23FITTING-LOXIT (8)
24TUBE-REGUL TEE
25TUBE-VALVE TO REGUL
26TUBE-VALVE TO MIXER ELBOW
275303208499 Frigidaire Safety Gas Valve
27A5300809968 Frigidaire Dishwasher P-1 Washer
285303935125 Frigidaire Pressure Regulator
29316091600 Frigidaire Oven Bracket
305303013272 Frigidaire Oven Nut
31SPUD NO 50
32NUT SPECIAL
