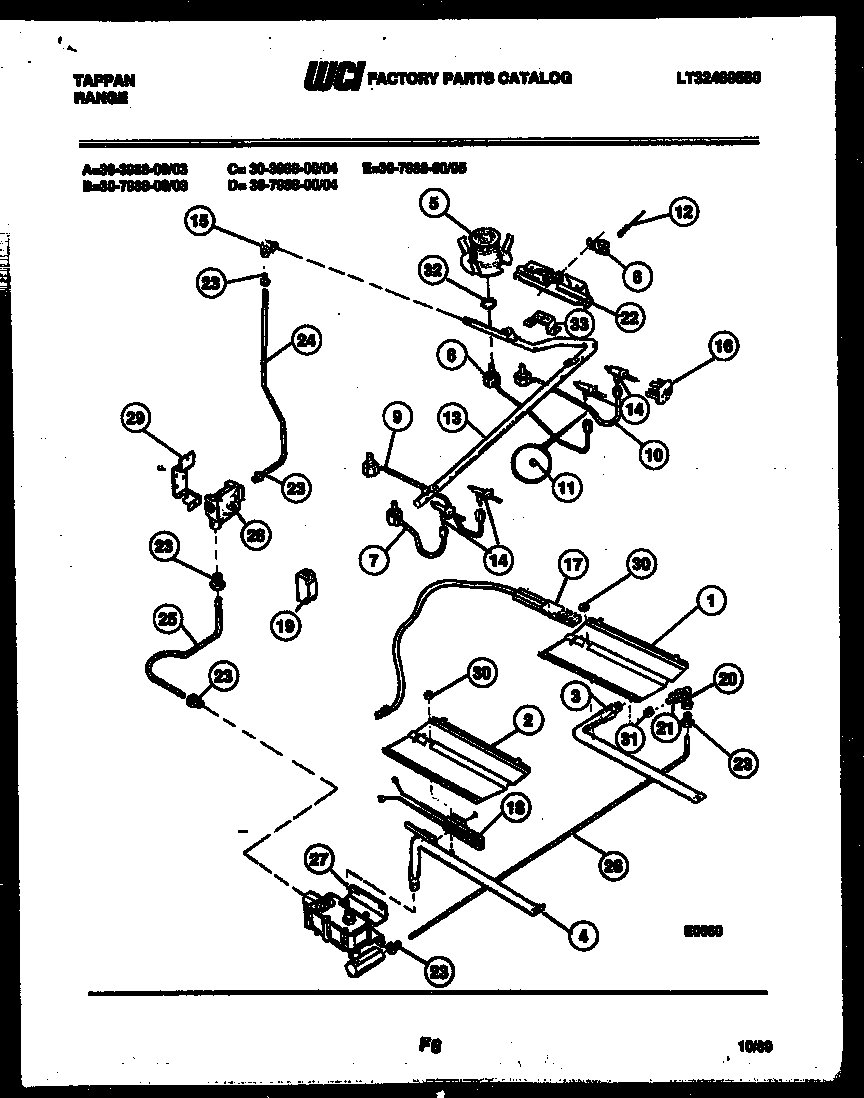

30-7988-23-03 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*33659WCI 3051420
1WCI 3131283
2BAFFLE-OVN BURNER
3WCI 079T028P01
4WCI 3131290
5WCI 079T032S02
6RETAINER IGNITER
7WCI 079T033H01
8WCI 079T033H02
9WCI 079T033H03
10WCI 079T033H04
11WCI 247T074P01
12IGNITER-TOP BURNR (4)
13MANIFOLD, PIPE
14WCI 3017846
15ELBOW 1/2 NP TO 9/16-24
15ANUT COMPRESSN (4)
16316035200 Frigidaire Ignition Switch
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
19WCI 316033P01
20WCI 455T008P02
21NUT
23FITTING-LOXIT (8)
24TUBE-REGUL TEE
25TUBE-VALVE TO REGUL
26TUBE-VALVE TO MIXER ELBOW
275303208499 Frigidaire Safety Gas Valve
27A5300809968 Frigidaire Dishwasher P-1 Washer
285303935125 Frigidaire Pressure Regulator
29316091600 Frigidaire Oven Bracket
305303013272 Frigidaire Oven Nut
31SPUD NO 50
32NUT SPECIAL
33WCI 072T839F02
