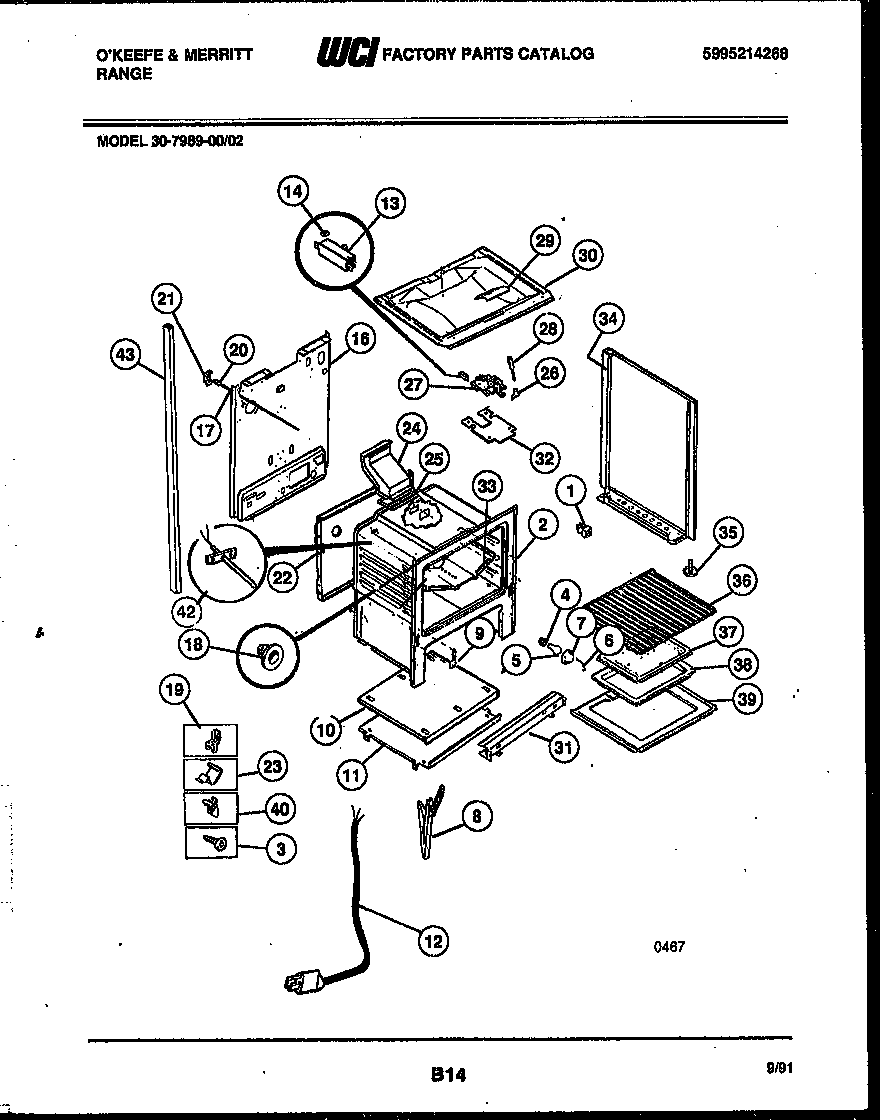

30-7989-00-02 06 – BODY PARTS

Products

PositionProduct
*59233WIRING DIAGRAM – (NOT FOR PURCHASE)
*59233WCI 08010570
1SPACER-BODYSIDE, (8)
3316282700 Frigidaire Oven Screw
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WIRE, GLASS RETAINER
75304524341 Frigidaire Lens
8WCI 316007002
9WCI 3131570
10WCI 3131951
11WCI 3131313
11AWCI 08067992
125304515659 Frigidaire Oven Power Cord
13SWITCH-LATCHING
14ASTUD SPACER (2) (NON-ILLUSTRATED)
14FSTNR-PUSH ON
16WCI 3203082
17WCI 5303209316
18WCI 31313903
193203010 Frigidaire Clip
20SWITCH-OVEN LITE DOOR
21WCI 5303131289
22WCI 08067991
23CLIP-WIRE
24WCI 3131931
25316542102 Frigidaire Flue Gasket
25ASHIELD-LATCH (NON-ILLUSTRATED)
25BWCI 08013188
26WCI 3203218
27WCI 5303015453
28WCI 5303131357
29WCI 08067757
30WCI 3011597
31SHIELD-FRONT
32SHIELD-LATCH
33ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
33WCI 3200836
34AWCI 5303269543
34WCI 5303269545
34PNL-B/S-LH-WHITE
34APNL-B/S-RH-WHITE
35SCREW-LEVELING
36316067902 Frigidaire Oven Rack
37WCI 5303131356
38PAN-BROILER
39BTTM-OVEN
39FINSULATION, OVEN TOP
39D08067973 Frigidaire 0 Insulation
39BWCI 08067961
39CINSULATION OVEN BACK (NON-ILLUSTRATED)
39A316064600 Frigidaire Oven Support
39EINSULATION, OVEN WRAPPER
40ASHIELD-OVN TOP
40CANTI-TIP KIT (NOT ILLUSTRATED)
40BWCI 5303269502
403051162 Frigidaire Oven Range Front Broiler Drawer Glide
425304497424 Frigidaire Oven Temperature Sensor Probe Kit
42AWCI 08068018
43TRIM – VERTICAL B/S (2)
