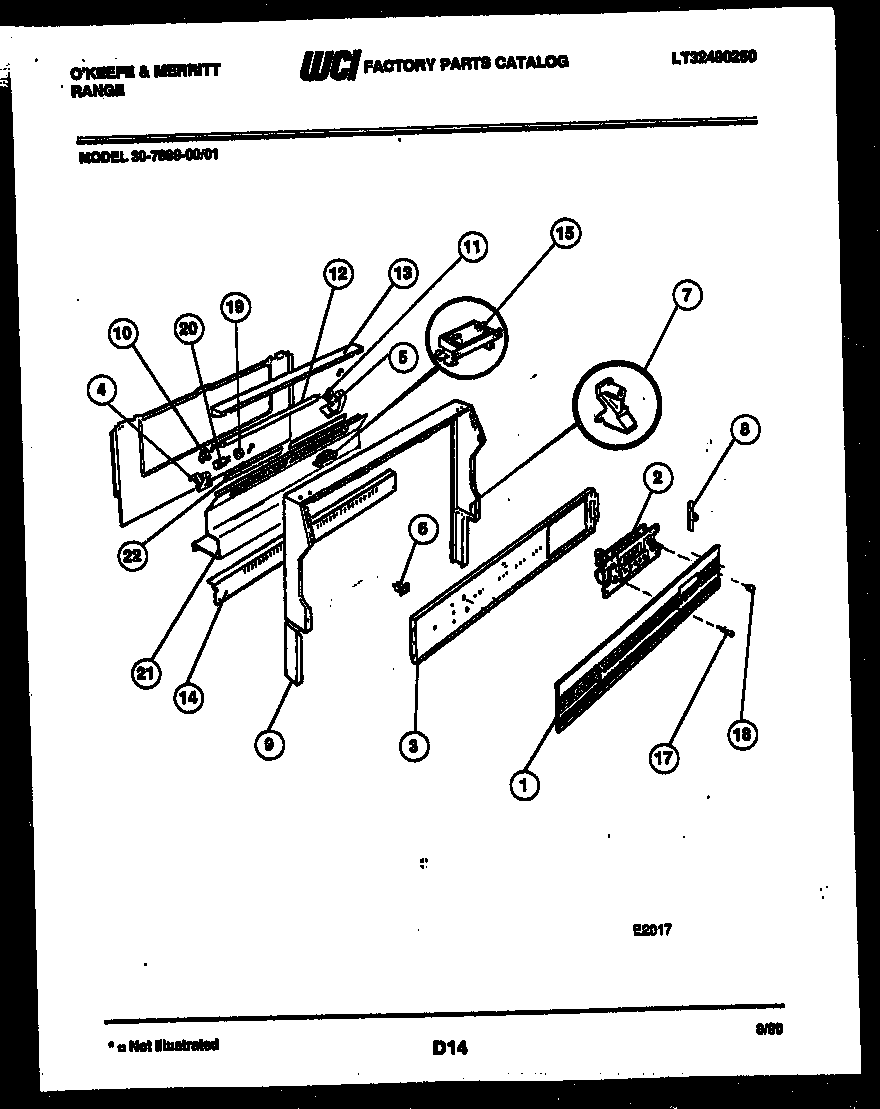

30-7989-23-01 02 – BACKGUARD

30-7989-23-01 02 – BACKGUARD

Written by

in

30-7989-23-01 02 – BACKGUARD

Products

PositionProduct
*38787FSTNR PWR CORD (2) (NON-ILLUSTRATED)
1WCI 5303208907
2WCI 3204643
3PLATE – INST MOUNTING
4BRKT-FLUOR LT MTG LH
5BRKT-FLUOR LT MTG RH
65308015487 Frigidaire Switch-Oven Light
7SUPPORT-BACKGUARD,(2)
8TRIM-GLASS RTNR. LH & RH
9WCI 5303208903
10RECEPTACLE-FLU LT RH
11RECEPTACLE-FLU LT LH
12BULB-FLUOR
13SHIELD – FLUOR. LT
14WCI 3131241
15WCI 5303051115
16WCI 3018820
17BUTTON ELECTRONIC (8)
18KNOB ELECT OVEN CONTROL (1)
19RECEPTACLE, STARTER
20STARTER-LAMP
21WCI 5303208905
22GLASS-WORK LITE (2)
