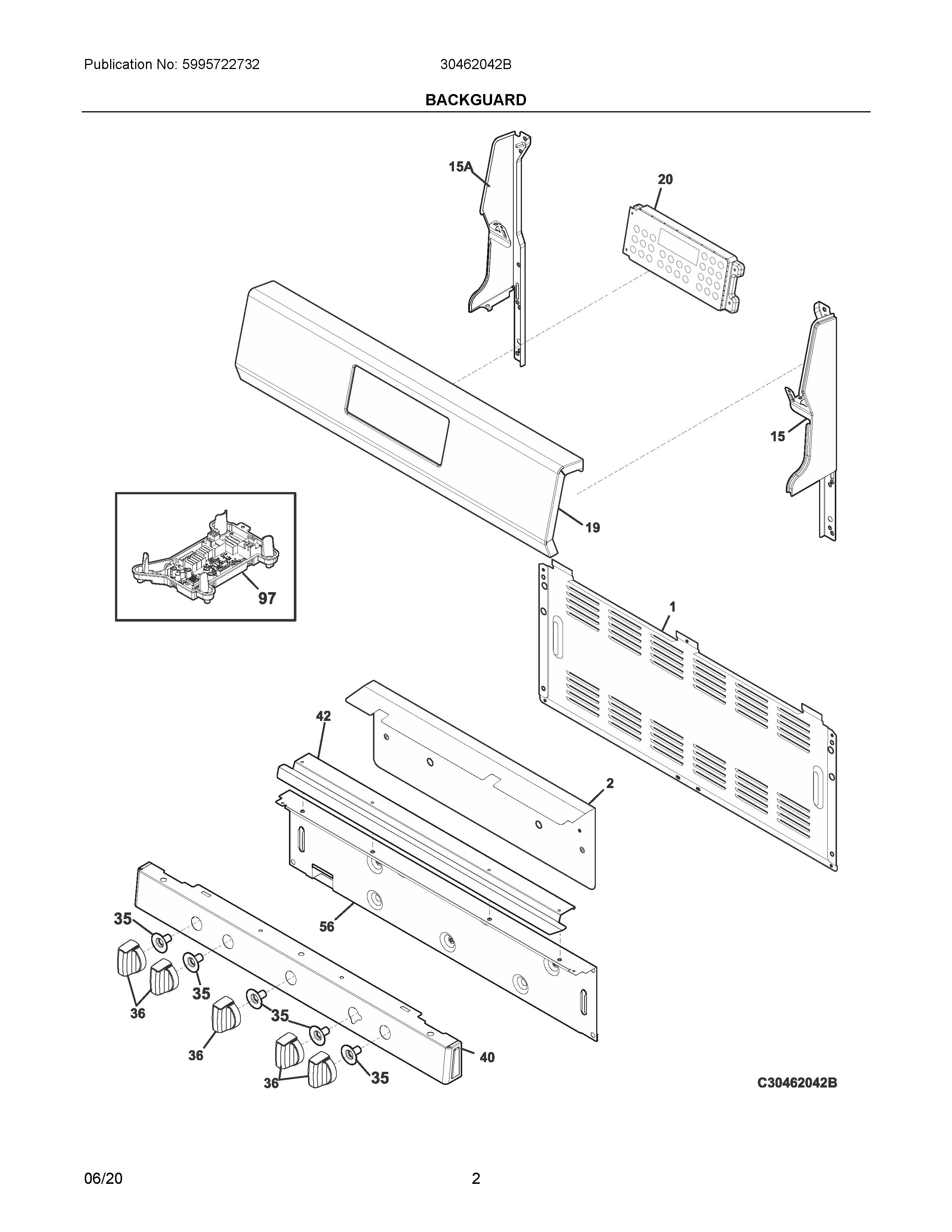

30462042B 02 – BACKGUARD

30462042B 02 – BACKGUARD

Written by

in

30462042B 02 – BACKGUARD

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI5304522013 Frigidaire Harness
NI316457000 Frigidaire RETAINER
NI5304523296 Frigidaire Harness
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
1316281802 Frigidaire Oven Shield
25304508980 Frigidaire Oven Shield
155304493644 Frigidaire Oven Cap
15A5304493646 Frigidaire Oven Cap
195304509890 Frigidaire Oven Control Panel
205304525176 Frigidaire Assembly Control
35316354300 Frigidaire Oven Shield
365304509929 Frigidaire Oven Knob
40316606123 Frigidaire Panel-Manifold
42808754601 Frigidaire Oven Deflector
56316230708 Frigidaire Oven Shield
975304516862 Frigidaire Oven Board
