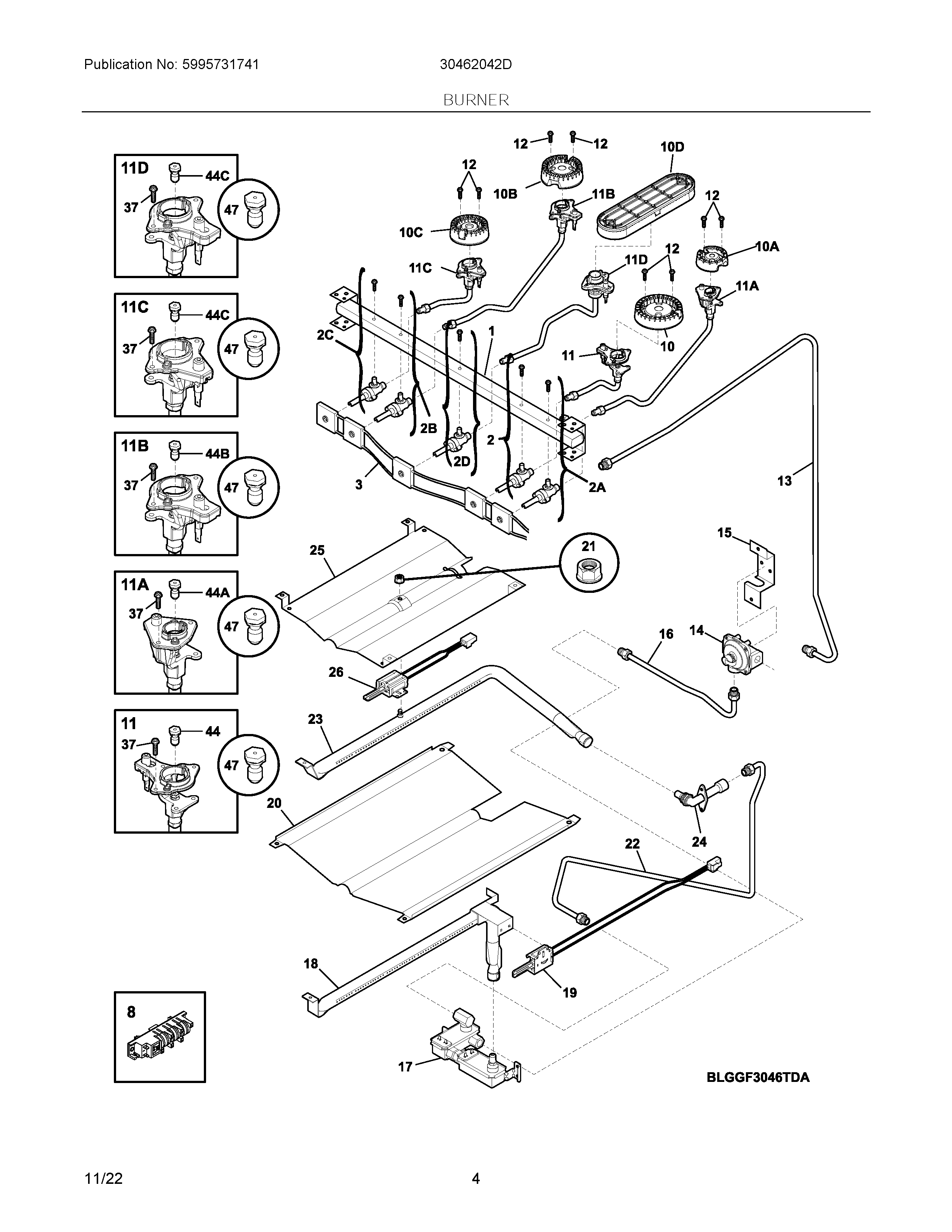

30462042D 03 – BURNER

30462042D 03 – BURNER

Written by

in

30462042D 03 – BURNER

Products

PositionProduct
NIA316021104 Frigidaire Oven Screw Assembly
NIA316001017 Frigidaire Screw
NIB5304505563 Frigidaire Oven Wire
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI241853202 Frigidaire Refrigerator Screw
NI5304494425 Frigidaire Oven Harness
NIA316498100 Frigidaire Shield
NIA316401500 Frigidaire Oven Cover
NI316215600 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
15304513540 Frigidaire Oven Manifold
25304506550 Frigidaire Oven Range Gas Valve (White)
2A5304506547 Frigidaire Oven Valve
2B5304506549 Frigidaire Oven Valve
2D5304506551 Frigidaire Oven Valve
2C5304506548 Frigidaire Oven Valve
35304528830 Frigidaire Harness
8SPARK MODULE
10C316558301 Frigidaire Burner
10316438401 Frigidaire Burner
10D316559300 Frigidaire Oven Burner
10A316438201 Frigidaire Burner
10B316438601 Frigidaire Burner
11B316543204 Frigidaire Igniter/Orifice Assembly
11C316540700 Frigidaire Igniter/Orifice Assembly
11D316536623 Frigidaire Igniter/Orifice Assembly
11316540800 Frigidaire Igniter/Orifice Assembly
12316540900 Frigidaire Oven Screw
13316489101 Frigidaire Suppl Tube-Manifold
14316091711 Frigidaire Regulator Assembly
15316091600 Frigidaire Oven Bracket
165304507348 Frigidaire Oven Tube
17SAFETY VALVE
18316404400 Frigidaire Oven Burner
195304506545 Frigidaire Gas Oven Range Igniter
205304519024 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
225304507768 Frigidaire Oven Tube
23316404302 Frigidaire Oven Burner
245304516894 Frigidaire Oven Elbow
255304497666 Frigidaire Oven Baffle
26BAKE IGNITOR
37316240600 Frigidaire Igniter Mounting Screw
44A316527504 Frigidaire Oven Orifice
44B316527511 Frigidaire Oven Orifice
44C316527500 Frigidaire Oven Burner Orifice
44316543200 Frigidaire Igniter/Orifice Assembly
47GRLP4 Frigidaire Oven LP Conversion Kit
