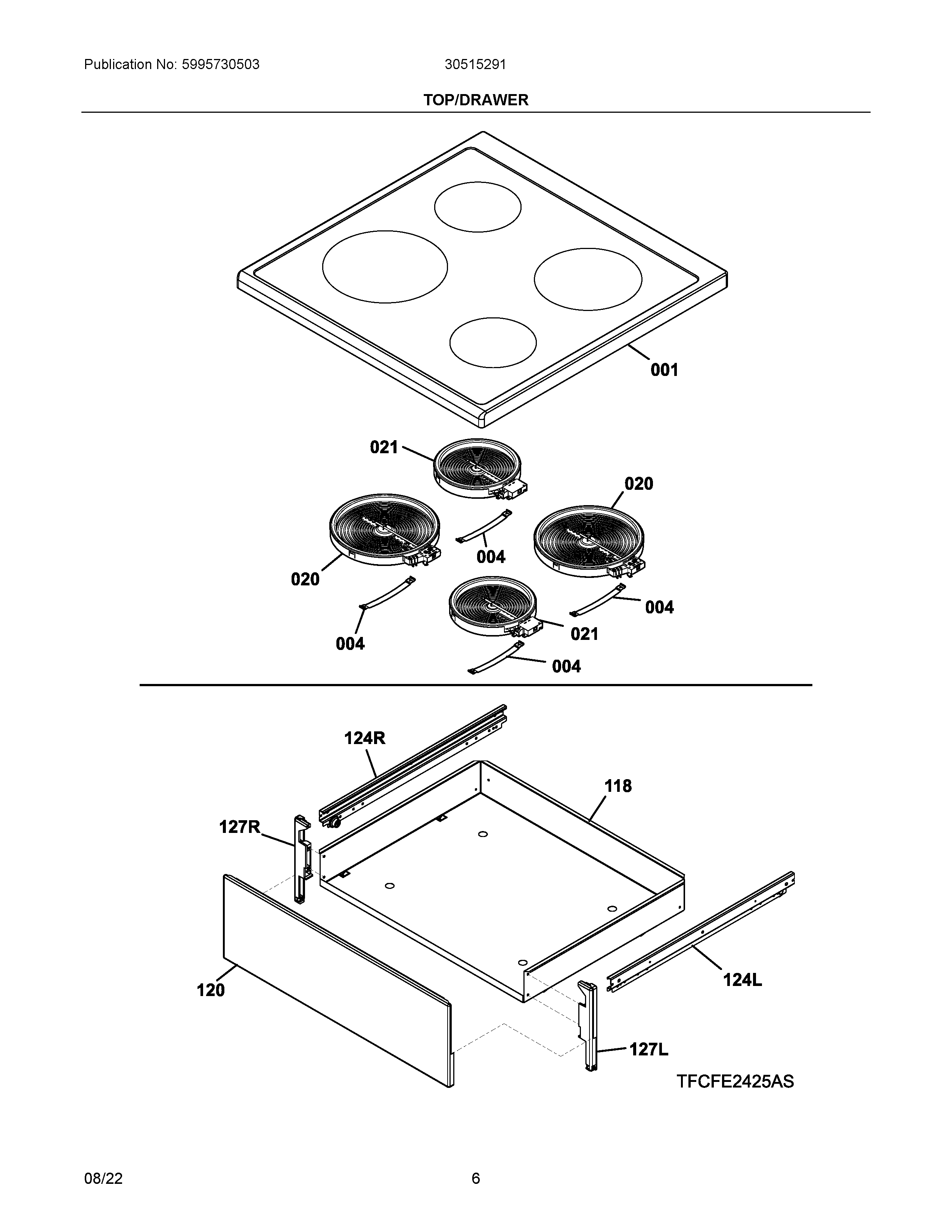

30515291 04 – TOP/DRAWER

30515291 04 – TOP/DRAWER

Written by

in

30515291 04 – TOP/DRAWER

Products

PositionProduct
NIA342553001 Frigidaire Wheel
NICAXLE, DRAWER
NIBWHEEL, DRAWER, FRONT
NIASEAL, COOKTOP
NIHOLDER, HOB
1SMOOTHTOP
4SPRING, RADIANT ELEMENT
20ELEMENT, RADIANT, 180MM, 1800W, 240V
21A02843501 Frigidaire Element
118DRAWER, TRAY
120342174601 Frigidaire Panel
124R342817708 Frigidaire Glide
124L342817707 Frigidaire Glide Assembly
127RSUPPORT, DRAWER, RH
127LSUPPORT, DRAWER, LH
