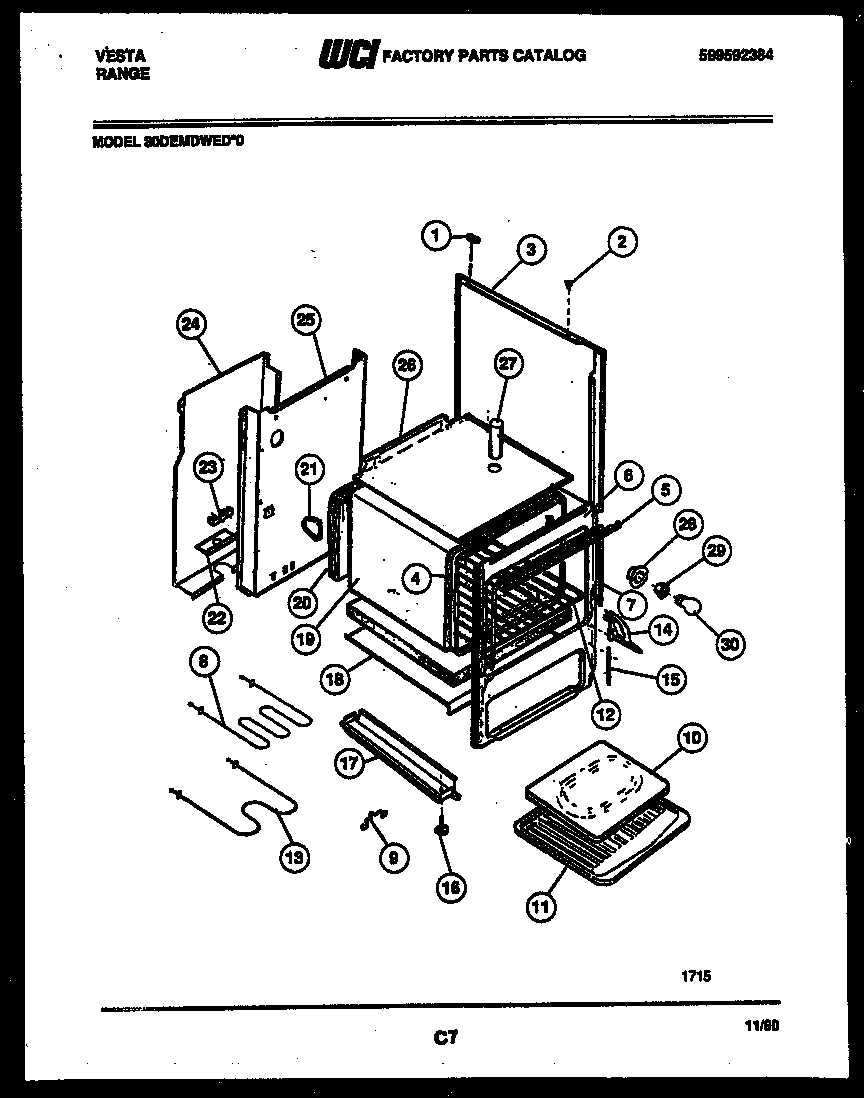

30DEMDWED0-23 02 – BODY PARTS

Products

Position	Product
*43735	ANTI-TIP KIT
1	GROMMET-MAINTOP
2	GROMMET
3	WCI 08014019
4C	WCI 3205655
4A	LINER-LEFTSIDE
4	LINER-RIGHT SIDE
4B	LINER-OVEN TOP
4D	LINER-OVEN BOTTOM
5	SUPPORT CONTROL PNL
6	WCI 3205578
7	DOOR SEAL
8	WCI 5303009293
9	SUPPORT-BROIL ELMNT
10	WCI 5303017712
11	WCI 5303016973
12	OVEN RACK (2)
13A	WCI 19100210113
13	WCI 5303017027
14A	318348801 Frigidaire Oven Left Side Door Hinge
14	HINGE ASSY-RH
15	SPRING-OVEN DOOR (2)
16	LEG LEVELLER (4)
17	RAIL-BASE
18	WCI 08013990
19	WCI 3017029
20	WCI 3017028
21	SUPPORT-REAR OVN (2)
22	SUPPORT-CONDUIT
23	5304409888 Frigidaire Oven Terminal Block with Hardware
24	COVER-MAIN BACK
25	WCI 3205592
26	WCI 11088003
27	TUBE-VENT
28	WCI 3051511
29	316116400 Frigidaire Oven Light Socket
30	316538904 Frigidaire Oven Lamp Light
