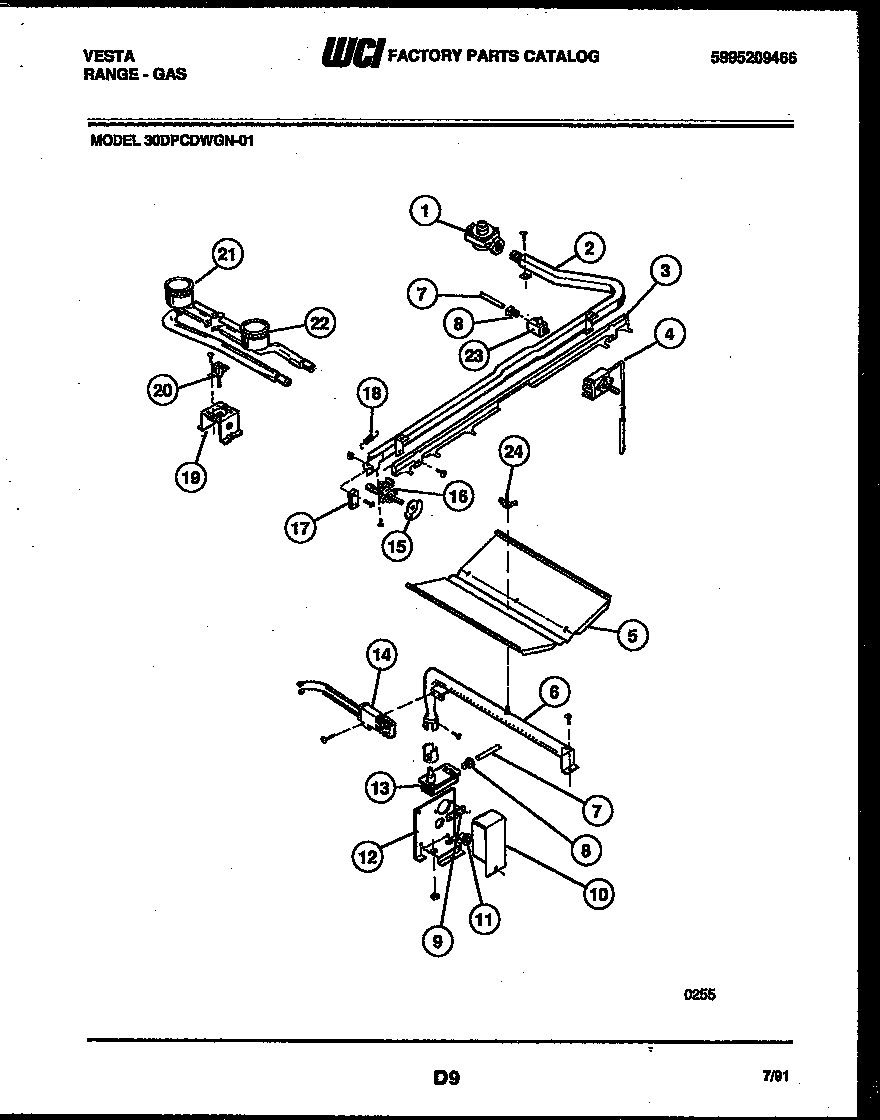

30DPCDWGN-23-01 06 – BURNER, MANIFOLD AND GAS CONTROL

30DPCDWGN-23-01 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

30DPCDWGN-23-01 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*542973016993 Frigidaire Oven Retainer
*54297WCI 5303276718
15308007974 Frigidaire Pressure Regulator
2MANIFOLD
3SLIDE BAR
4WCI 5303210474
4AWCI 5300009126
5WCI 3203676
6WCI 5303202752
7TUBE-OVEN FEED
8NUT-LOXIT (3/8)
9TERMINAL BLOCK
10COVER – OVEN SAFETY VALVE
11WCI 08008051
12SUPPORT-OVEN SAFETY VALVE
13WCI 5308009419
145303935066 Frigidaire Oven Flat Igniter 17" Leads
15CAM-VALVE
16WCI 5303131057
17WCI 5303131094
18SPRING – SLIDE BAR
19WCI 5303210471
20IGNITER-TOP BURNER 36“
21Burner,top ,rear
22BURNER-TOP FRONT
23WCI 5303131099
24NUT – WING
