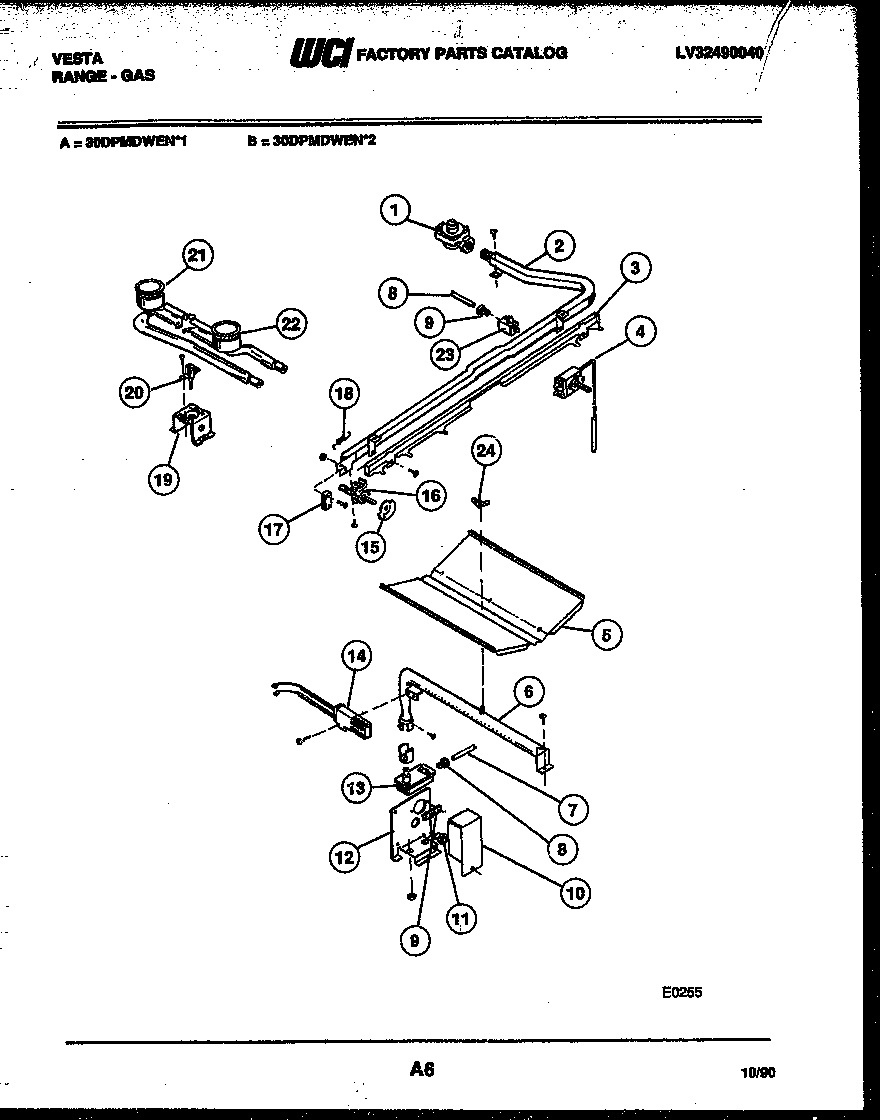

30DPMDWEN1 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
2MANIFOLD
3SLIDE BAR
4WCI 5308013926
4AWCI 5300009126
5BAFFLE-OVEN BURNER
6WCI 5303202752
7TUBE-OVEN FEED
8NUT-LOXIT (3/8)
9TERMINAL BLOCK
10COVER – OVEN SAFETY VALVE
11WCI 08008051
12SUPPORT-OVEN SAFETY VALVE
13WCI 5308009419
145303935066 Frigidaire Oven Flat Igniter 17" Leads
15CAM-VALVE
16WCI 5303131057
17WCI 5303131094
18SPRING – SLIDE BAR
19WCI 3203964
20IGNITER-TOP BURNER 36“
21Burner,top ,rear
22BURNER-TOP FRONT
23WCI 5303131099
24NUT – WING
