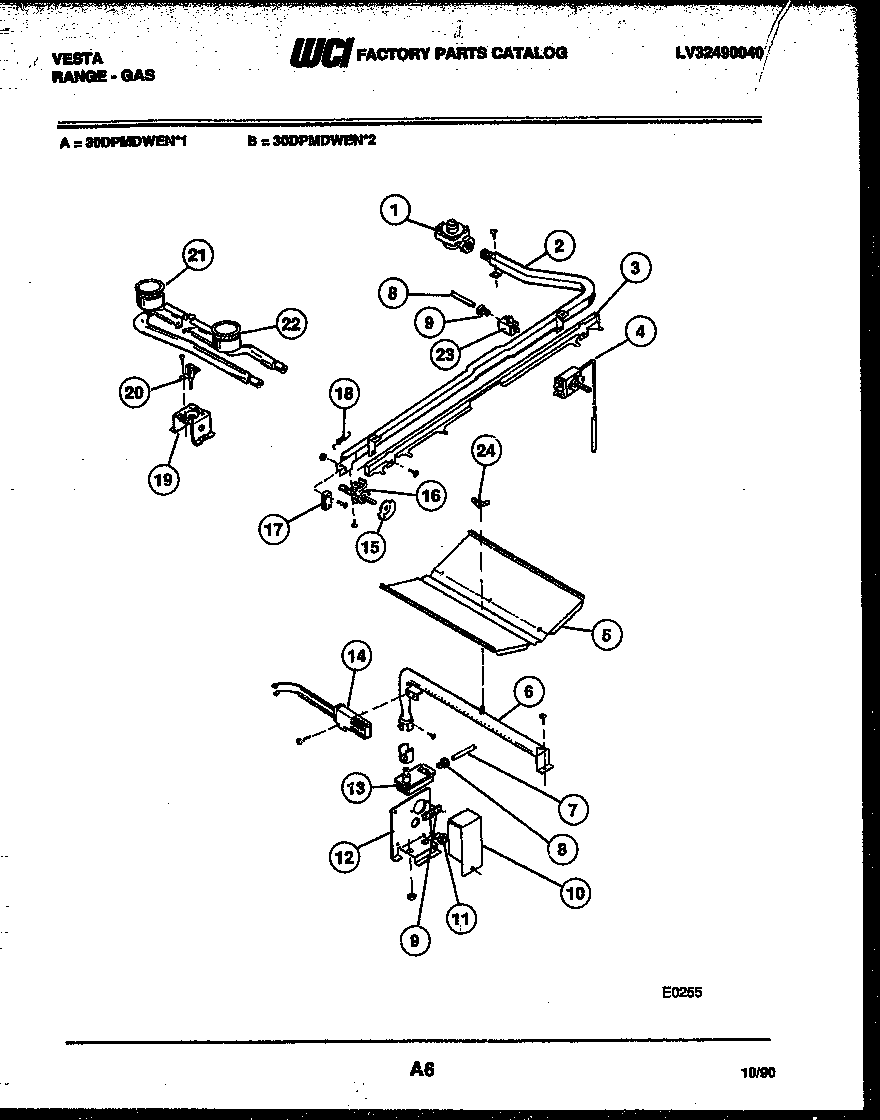

30DPMDWEN2-23 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
1	5308007974 Frigidaire Pressure Regulator
2	MANIFOLD
3	SLIDE BAR
4	WCI 5308013926
4A	WCI 5300009126
5	BAFFLE-OVEN BURNER
6	WCI 5303202752
7	TUBE-OVEN FEED
8	NUT-LOXIT (3/8)
9	TERMINAL BLOCK
10	COVER – OVEN SAFETY VALVE
11	WCI 08008051
12	SUPPORT-OVEN SAFETY VALVE
13	WCI 5308009419
14	5303935066 Frigidaire Oven Flat Igniter 17" Leads
15	CAM-VALVE
16	WCI 5303131057
17	WCI 5303131094
18	SPRING – SLIDE BAR
19	WCI 3203964
20	IGNITER-TOP BURNER 36“
21	Burner,top ,rear
22	BURNER-TOP FRONT
23	WCI 5303131099
24	NUT – WING
