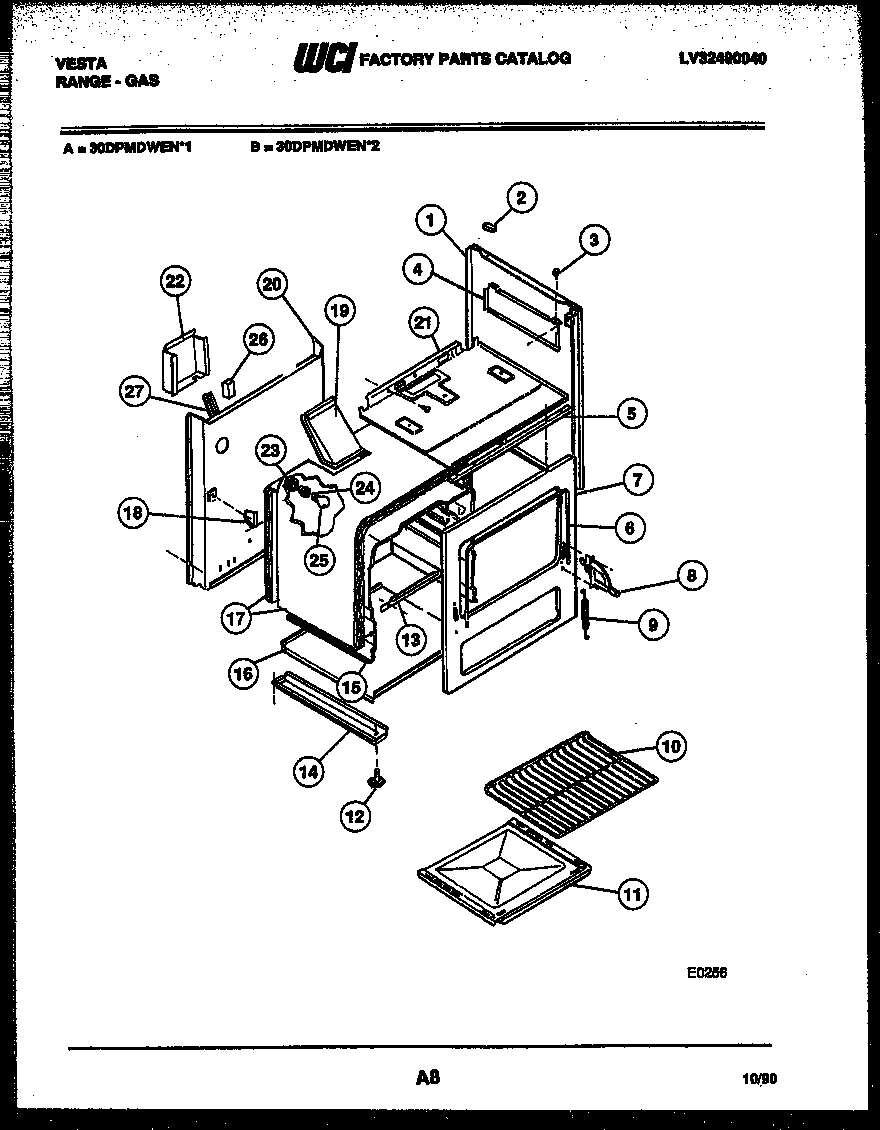

30DPMDWEN2-23 07 – BODY PARTS

Products

Position	Product
*37450	WCI 5303212856
1	PANEL BODYSIDE-ALMD
2	GROMMET-MAINTOP
3	GROMMET
4	SHIELD-BURNER BOX RH
4A	SHIELD-BURNER BOX LH
5	SUPPORT CONTROL PNL
6	DOOR SEAL
7	WCI 3205578
8	HINGE ASSY-RH
8A	318348801 Frigidaire Oven Left Side Door Hinge
9	SPRING-OVEN DOOR (2)
10	OVEN RACK (2)
11	WCI 3018282
13	SUPPORT-OVEN BOTTOM
14A	Rail,base ,RH
14B	RAIL-BASE, LH
15A	OVEN LINER-SIDE LH
15B	WCI 3018347
15	OVEN LINER-SIDE RH
15C	WCI 3018286
16	WCI 3011645
17	WCI 3017171
17A	WCI 3017172
18	SUPPORT-REAR OVN (2)
19	WCI 3017173
20	WCI 5303013340
21	WCI 3017174
21A	ANTI-TIP KIT
21B	CLIP,BODYSIDE
22	WCI 08013953
23	WCI 3051511
24	316116400 Frigidaire Oven Light Socket
25	316538904 Frigidaire Oven Lamp Light
26	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
27	CHANNEL – MAIN WIRE
