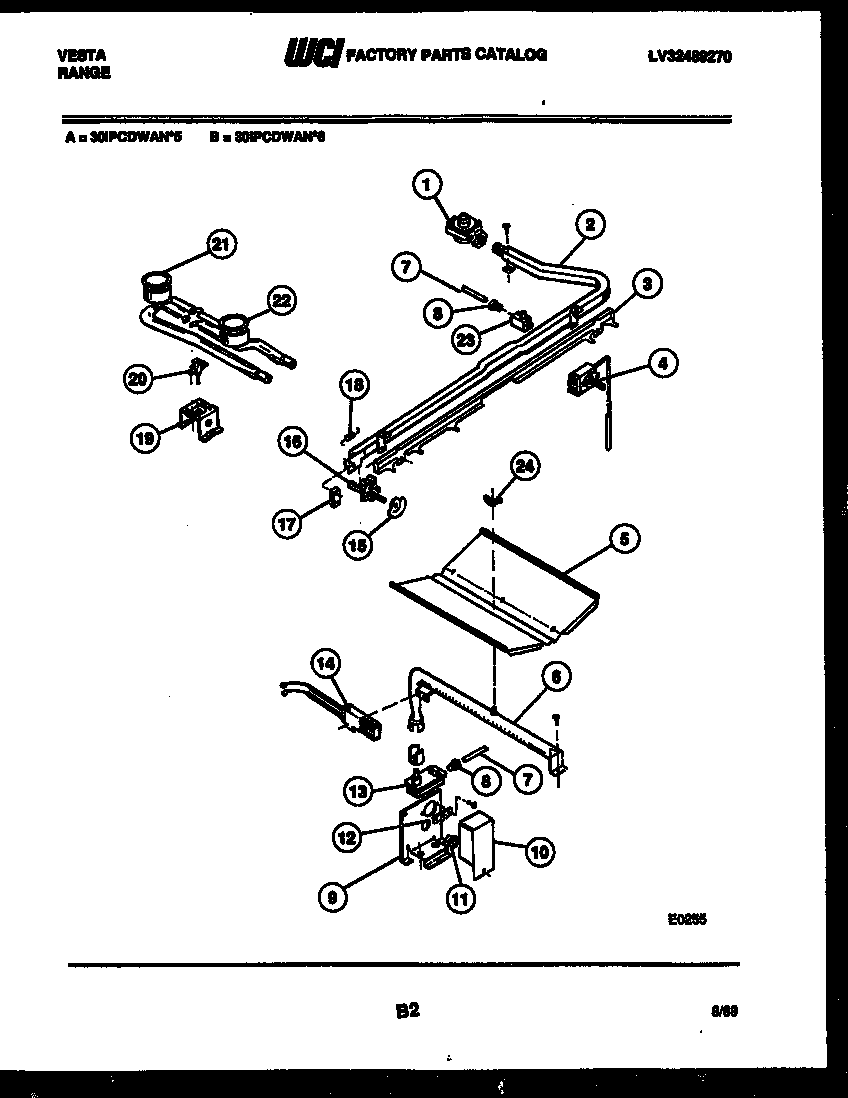

30IPCDWAN6 06 – BURNER, MANIFOLD AND GAS CONTROL

30IPCDWAN6 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

30IPCDWAN6 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
2WCI 08013906
3SLIDE BAR
4ACLIP-CAPILLARY (NON-ILLUSTRATED)
4THERMOSTAT
5BAFFLE-OVEN BURNER
6WCI 3202752
7TUBE – 3/8 FEED
8BUT – 3/8 LOXIT
9WCI 08007985
10WCI 08007986
11SNAP – BUSHING
12SUPPORT-OVEN SAFETY VALVE
13WCI 08009419
145303935066 Frigidaire Oven Flat Igniter 17" Leads
15WCI 3131859
16VALVE-TOP BURNER (2)
17MICRO – SWITCH
18WCI 3131096
19WCI 3203964
20IGNITOR-TOP BURNER 36“
21BURNER – TOP REAR
22BURNER – TOP FRONT
23WCI 3131099
24NUT – WING
