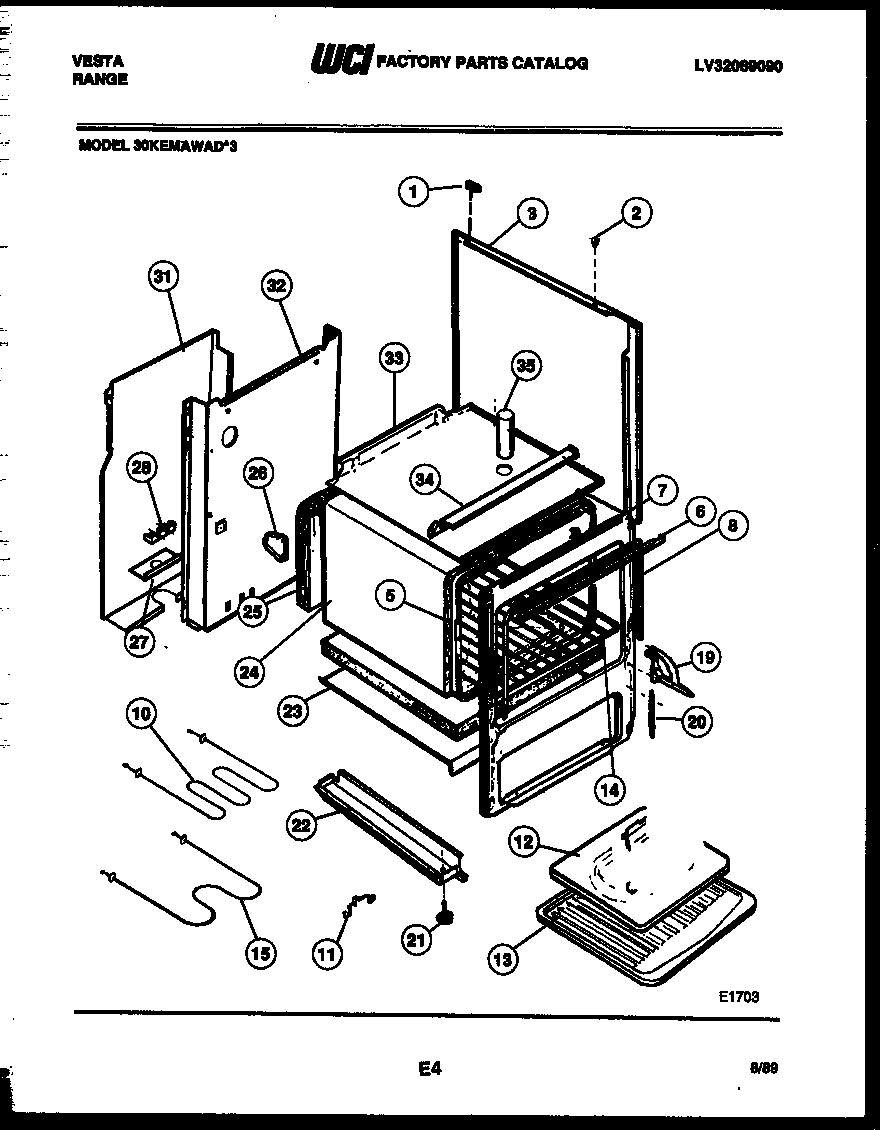

30KEMAWAD3 02 – BODY PARTS

Products

Position	Product
*28896	ANTI-TIP KIT
1	GROMMET-MAINTOP
2	GROMMET
3	PANEL-BODYSIDE (WHITE) (2)
5B	LINER-OVEN TOP
5C	LINER-OVEN BACK
5D	LINER-OVEN BOTTOM
5A	LINER-LEFTSIDE
5	LINER-RIGHT SIDE
6	SUPPORT CONTROL PNL
7	WCI 3205578
8	WCI 3009427
10	WCI 3009293
11	WCI 3009445
12	BROILER GRID
13	WCI 3016973
14	RACK-OVEN
15	WCI 3017027
19	WCI 3204670
19A	318348801 Frigidaire Oven Left Side Door Hinge
20	SPRING (2)
21	WCI 3051080
22	BASE RAIL
23	WCI 3017031
24	WCI 3017029
25	WCI 3017028
26	SUPPORT-REAR OVN (2)
27	SUPPORT-CONDUIT
28	5304409888 Frigidaire Oven Terminal Block with Hardware
31	COVER-MAIN BACK
32	WCI 3205592
33	BURNER BOX BOTTOM
34	WCI 3017034
35	TUBE-VENT
