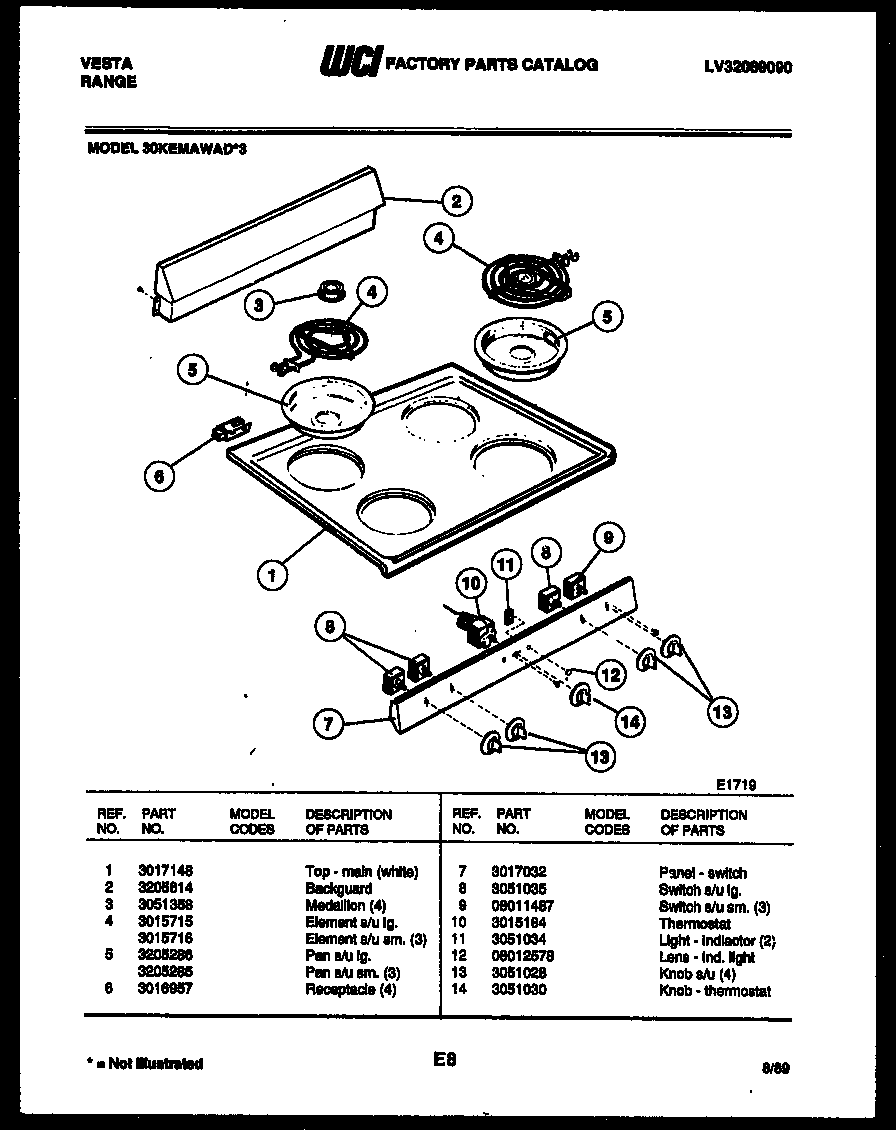

30KEMAWAD3 05 – BACKGUARD AND COOKTOP PARTS

30KEMAWAD3 05 – BACKGUARD AND COOKTOP PARTS

Written by

in

30KEMAWAD3 05 – BACKGUARD AND COOKTOP PARTS

Products

PositionProduct
1WCI 3017148
2WCI 3205614
3MEDALLION
4A318372210 Frigidaire Oven Range 6" 1250W Surface Element
4316442300 Frigidaire Oven 2100W Coil Element 8
5316048413 Frigidaire Oven Range Chrome 8" Drip Bow
5A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
65303935058 Frigidaire Oven Burner Receptacle Kit
7PANEL-MANIFOLD WHITE
95303935086 Frigidaire Oven Top Burner Switch Kit
10WCI 3015184
11INDICATOR LIGHT
12LENS (3)
13KNOB-TOP ELEMENT (4)
14WCI 3051030
