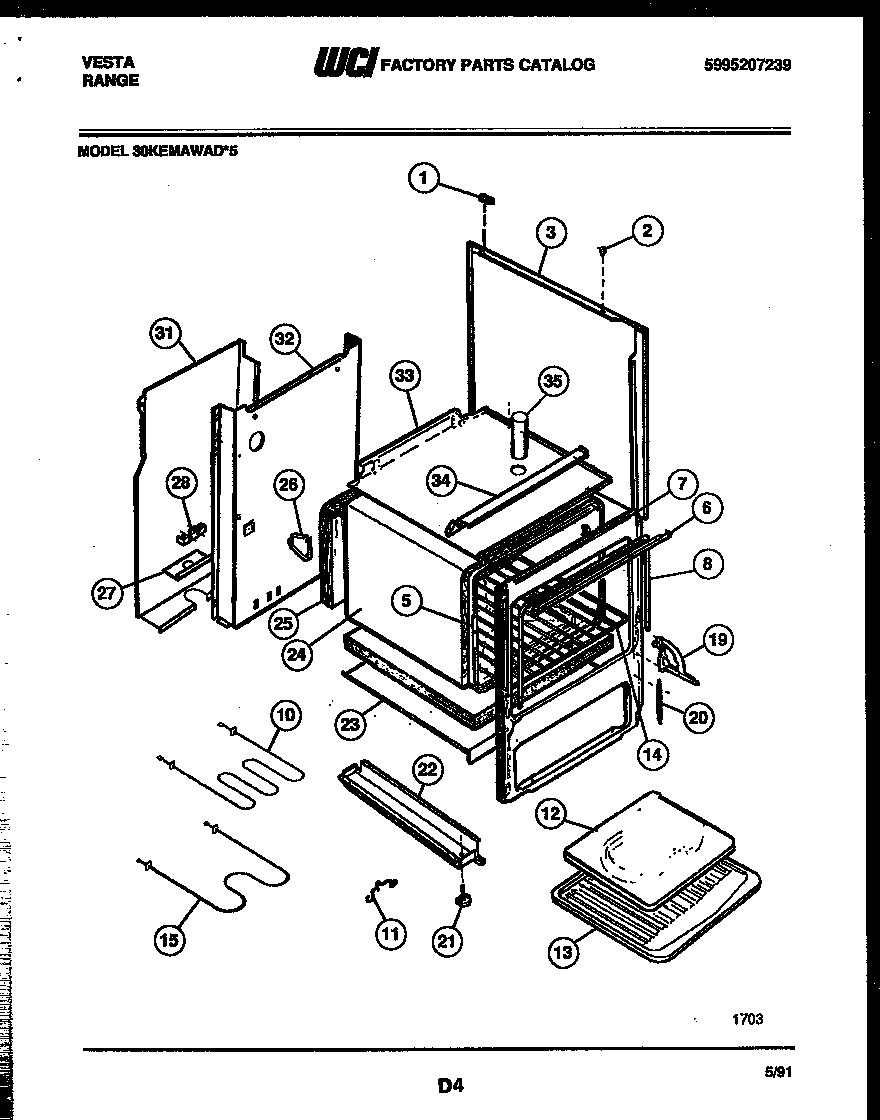

30KEMAWAD5 02 – BODY PARTS

Products

Position	Product
*49943	WCI 19100210113
*49942	WCI 5303210891
*49942	WCI 5303210892
*49942	ANTI-TIP KIT
1	GROMMET-MAINTOP
2	GROMMET
3	BODYSIDE PANEL-WHITE (2)
5B	LINER-OVEN TOP
5C	LINER-OVEN BACK
5D	LINER-OVEN BOTTOM
5	LINER-RIGHT SIDE
5A	LINER-LEFTSIDE
6	SUPPORT CONTROL PNL
7	WCI 3205578
8	DOOR SEAL
10	WCI 5303009293
11	SUPPORT-BROIL ELMNT
12	WCI 5303017712
13	WCI 5303016973
14	OVEN RACK (2)
15	WCI 5303017027
19A	318348801 Frigidaire Oven Left Side Door Hinge
19	HINGE ASSY-RH
20	SPRING-OVEN DR (2)
22	Rail,base ,RH
22A	RAIL-BASE, LH
23	WCI 08013990
24	WCI 3017029
25	WCI 3017028
26	SUPPORT-REAR OVN (2)
27	SUPPORT-CONDUIT
28	5304409888 Frigidaire Oven Terminal Block with Hardware
31	COVER-MAIN BACK
32	WCI 5303274003
33	WCI 11088003
34	WCI 3017034
35	TUBE-VENT
