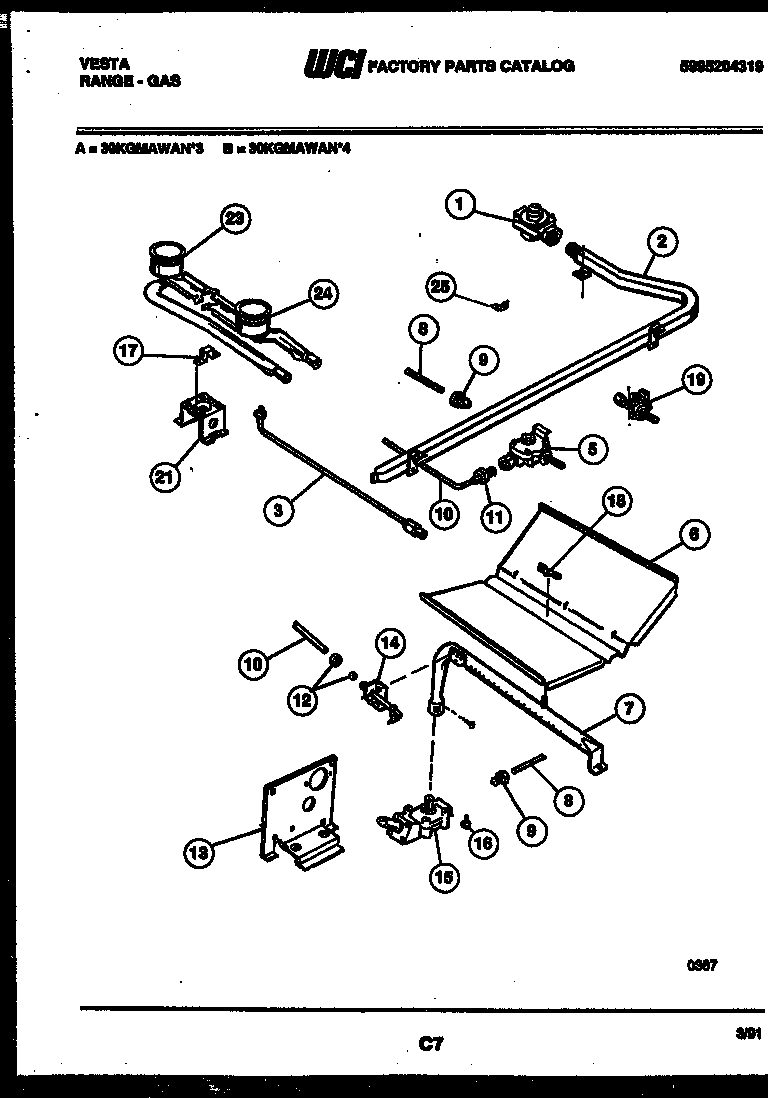

30KGMAWAN4-23 05 – BURNER, MANIFOLD AND GAS CONTROL

30KGMAWAN4-23 05 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

30KGMAWAN4-23 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
2WCI 5303017164
3TUBE-PILOT
5WCI 5308013927
6BAFFLE-OVEN BURNER
7WCI 5308013855
8TUBE-OVEN PILOT
9NUT-LOXIT (3/8)
10TUBE OVEN SUPPLY
11WCI 3131074
12NUT
13SUPPORT-OVEN SAFETY VALVE
14WCI 3205598
15WCI 5308013942
16WCI 3131067
17STRAP – PILOT SHIELD
18NUT – WING
19WCI 5303131057
21SUPPORT-TOP BURNER
23Burner,top ,rear
24BURNER-TOP FRONT
25WCI 5300009126
