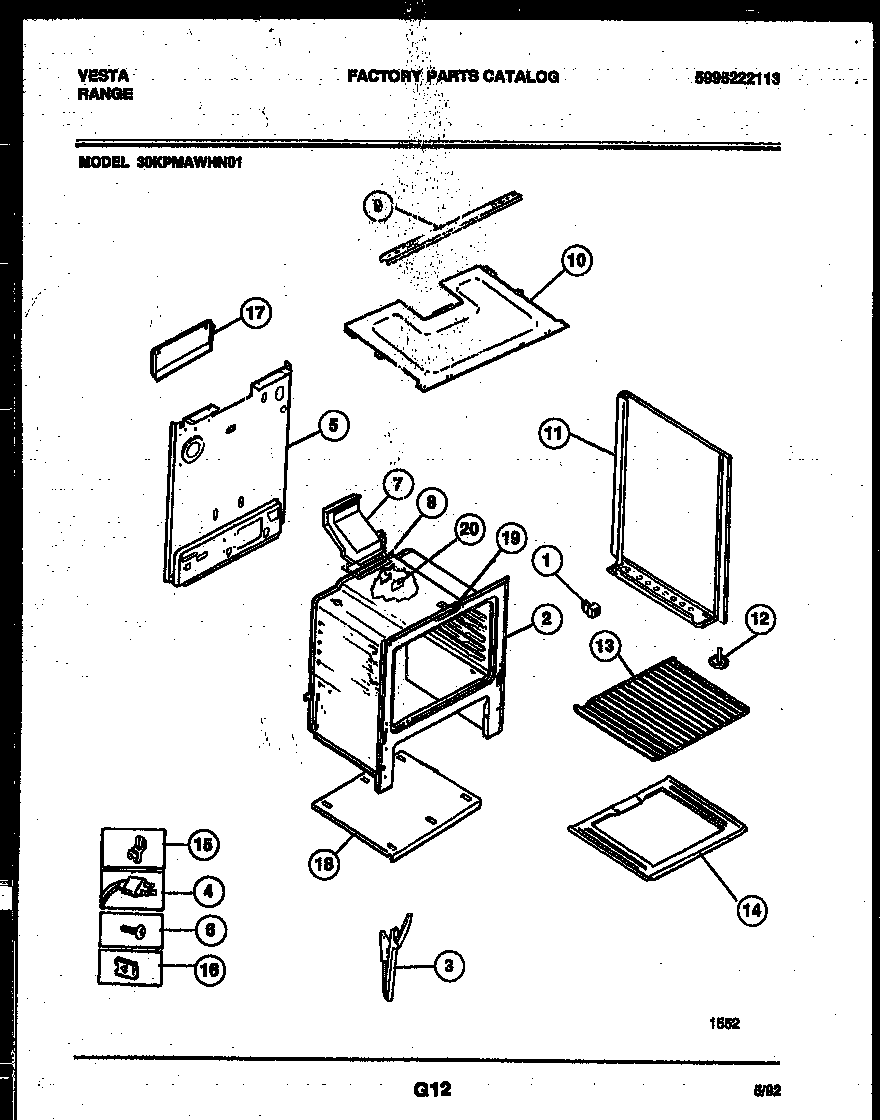

30KPMAWHN1 07 – BODY PARTS

Products

Position	Product
*70611	WCI 08067961
*70612	WCI 3131660
*70611	DIAGRAM, WIRING (NOT FOR PURCHASE)
*70611	WCI 3131192
*70611	COVER-POWER CORD, (NON-ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
3	Hinge,oven door ,(2)
4	5304515659 Frigidaire Oven Power Cord
5	WCI 3203082
6	316282700 Frigidaire Oven Screw
7	316204402 Frigidaire Oven Flue
8	316542102 Frigidaire Flue Gasket
9	CHANNEL-BURNER BOX
10	BURNER BOX BOTTOM
11A	PNL-B/S-LH-WHITE
11	PNL-B/S-RH-WHITE
12	SCREW-LEVELING
13	316067902 Frigidaire Oven Rack
14A	INSUL – OVEN BACK (NON-ILLUSTRATED)
14	BTTM-OVEN
14B	INSULATION, OVEN WRAPPER
15	5303284616 Frigidaire Range Bulb Clip Thermostat
16	3203010 Frigidaire Clip
17	COVER-VENT
17A	316064600 Frigidaire Oven Support
18	WCI 5303270160
19	COVER-OVEN FRONT
19A	ANTI-TIP KIT (NOT ILLUSTRATED)
19B	SHIELD-FLUE, (NON-ILLUSTRATED)
20	COVER-IGNITOR
