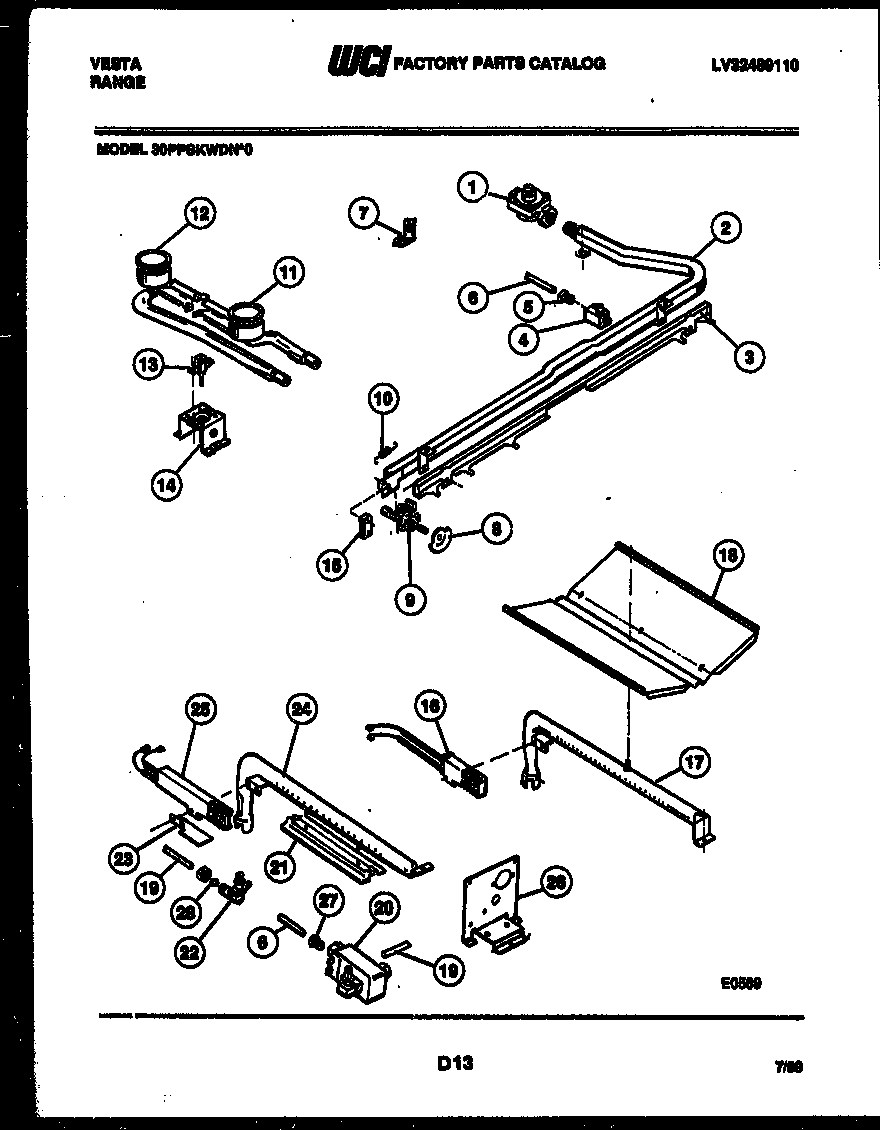

30PPSKWDN0-23 06 – BURNER PARTS

Products

Position	Product
*29633	SPACER (NON-ILLUSTRATED)
1	5308007974 Frigidaire Pressure Regulator
2	WCI 08013906
3	SLIDE BAR
4	WCI 3131099
6	WCI 3131863
7	CLIP-CAPILLARY (NON-ILLUSTRATED)
8	WCI 3131859
9	VALVE-TOP BURNER (2)
10	WCI 3131096
11	BURNER – TOP FRONT
12	BURNER – TOP REAR
13	IGNITER-TOP BURNER 48“
14	WCI 3203964
15	MICRO – SWITCH
16	5303935066 Frigidaire Oven Flat Igniter 17" Leads
17	WCI 3131860
18	WCI 08011508
19	WCI 3131866
20	WCI 3017415
21	WCI 08011509
22	WCI 08011470
23	WCI 3131871
24	WCI 3131873
25	5303935067 Frigidaire Range Oven Flat Igniter 3-1/4"
26	WCI 3131831
27	WCI 3131064
28	WCI 08011467
