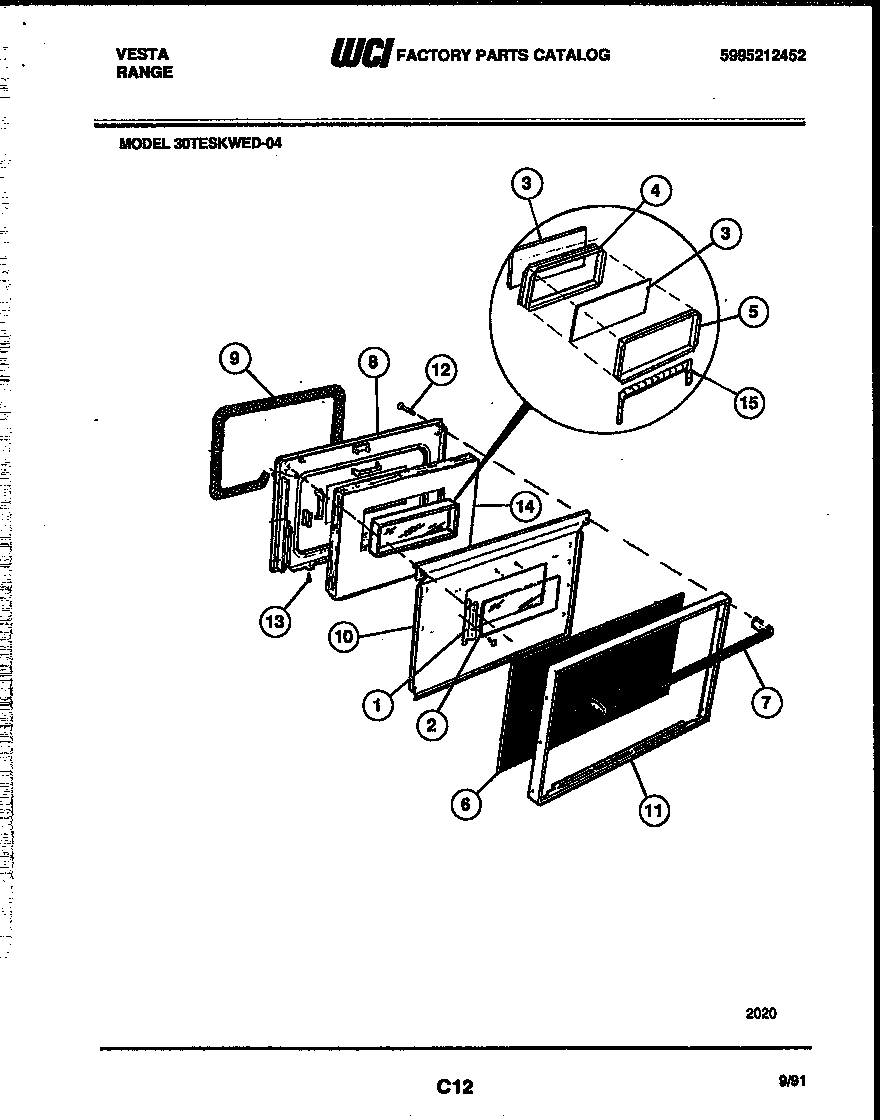

30TESKWED-04-23 07 – DOOR PARTS

30TESKWED-04-23 07 – DOOR PARTS

Written by

in

30TESKWED-04-23 07 – DOOR PARTS

Products

PositionProduct
*58450SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*58451WCI 5303269859
*584505303300265 Frigidaire Oven Screw
*58451REFLECTOR, ALUMINUM FOIL
*584505303208655 Frigidaire Reflector Assembly
1BRACKET-GLASS MTG
2GLASS-OVEN DOOR, INNER
3GLASS-OVEN DOOR, HEAT BARRIER, (2)
4WCI 5303209517
5WCI 5303209511
6GLASS FRNT
7HANDLE-DOOR, OVEN
8WCI 5303209515
95303131601 Frigidaire Oven Seal
10SHIELD-INSULATION
11WCI 5303209518
12SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
135303271648 Frigidaire Oven Screw
14INSULATION-OVEN DOOR
15SEAL-ROPE, 0.25 DIA
