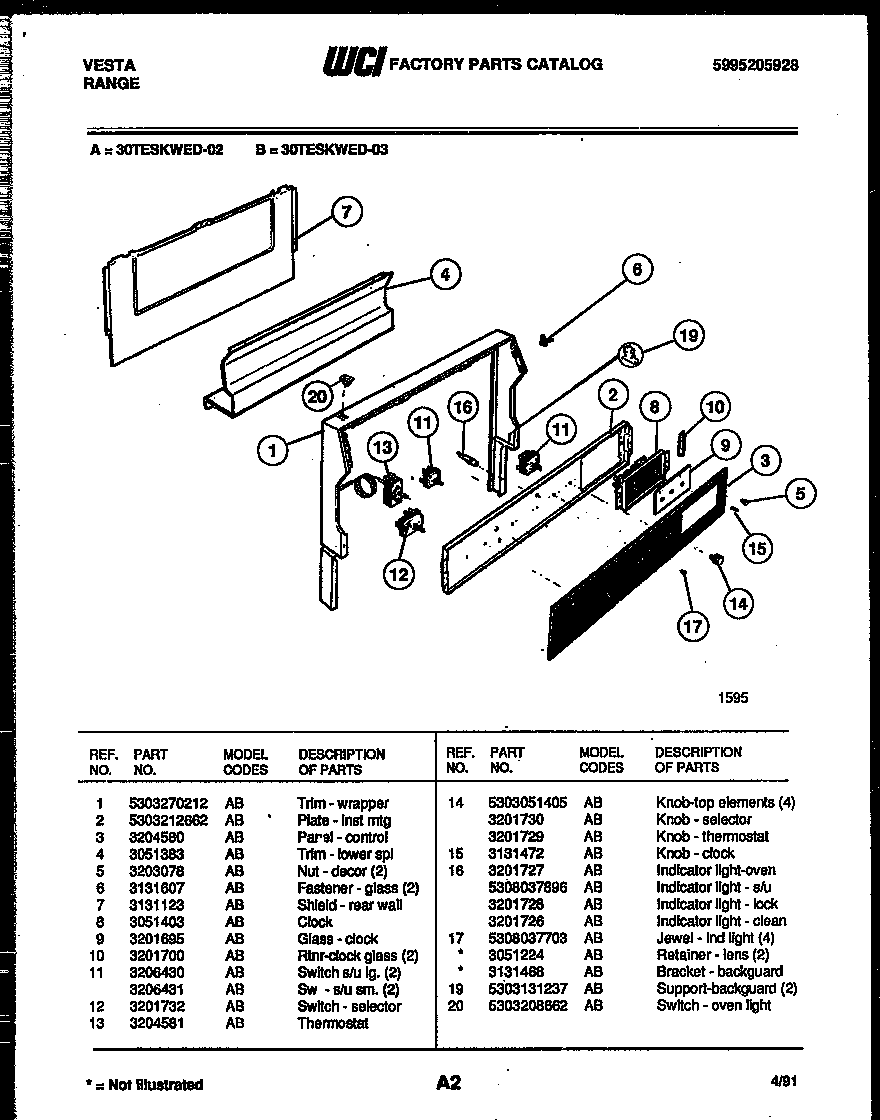

30TESKWED-23-02 02 – BACKGUARD

30TESKWED-23-02 02 – BACKGUARD

Written by

in

30TESKWED-23-02 02 – BACKGUARD

Products

PositionProduct
1WCI 5303270212
2PLATE, INSTRUMENT MTG
3WCI 3204580
4WCI 3051383
5NUT-DECOR (2)
6FASTENER, GLASS (2)
7SHIELD-BACKGUARD,REAR WALL
8WCI 3051403
9WCI 3201695
10RETAINER, CLOCK GLASS, (2)
115303935086 Frigidaire Oven Top Burner Switch Kit
12WCI 3201732
13THERMOSTAT-OVEN
14WCI 5303051405
14BWCI 3201729
14AWCI 3201730
15KNOB-CLOCK
16INDICATOR LITE, OVEN (BLACK)
16BINDICATOR LIGHT-LOCK (1)
16CLIGHT/LAMP, INDICATOR, BLUE, 250 V
16AWCI 5308037896
17ARETAINER-LENS
17JEWEL LENS-AMBER
17BWCI 3131468
19SUPPORT-BACKGUARD,(2)
205308015487 Frigidaire Switch-Oven Light
