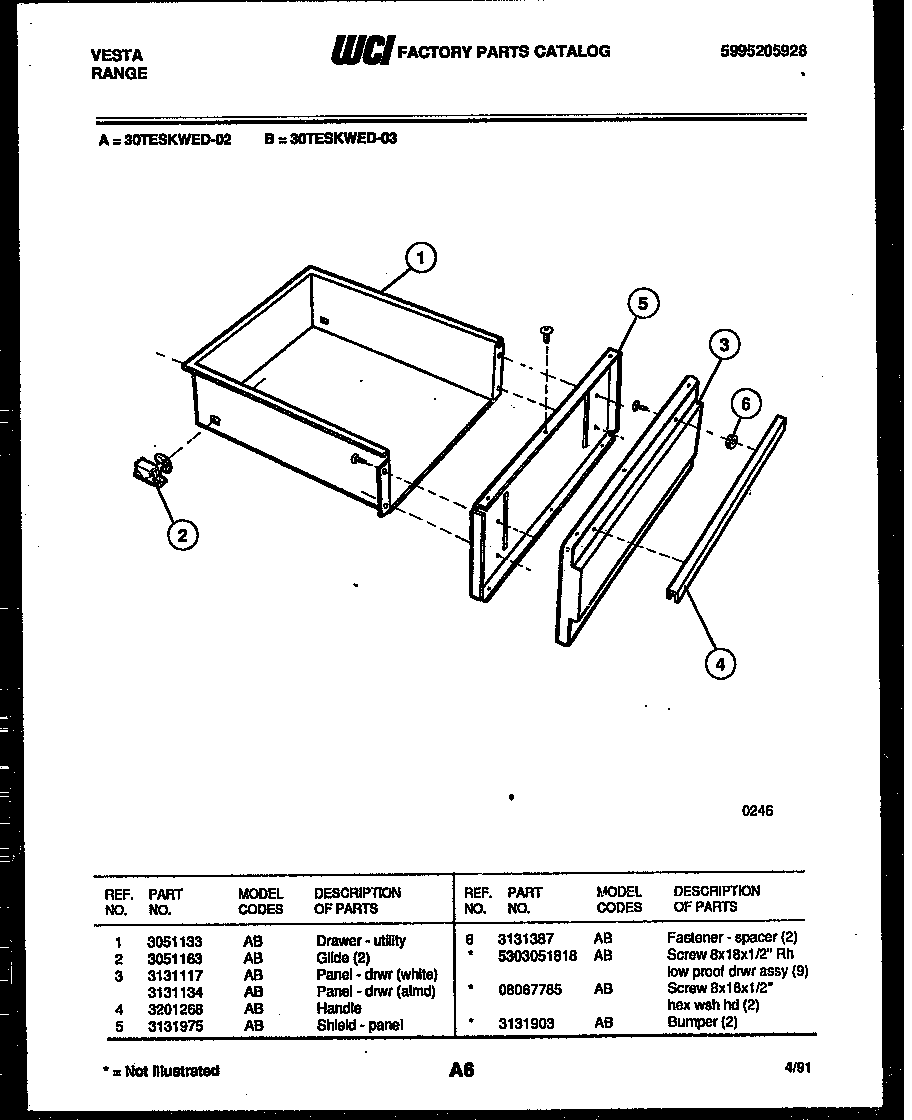

30TESKWED-23-03 05 – DRAWER PARTS

Written by

Products

Position	Product
*49525	5303300265 Frigidaire Oven Screw
*49525	3131903 Frigidaire Door/Drawer Bumper
*49525	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
1	WCI 3051133
2	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
3	PANEL – BROILER ALMD
4	HANDLE-DRAWER, BRUSHED CHROME
5	SHIELD-PNL
6	FSTNR, SPACER (2)
