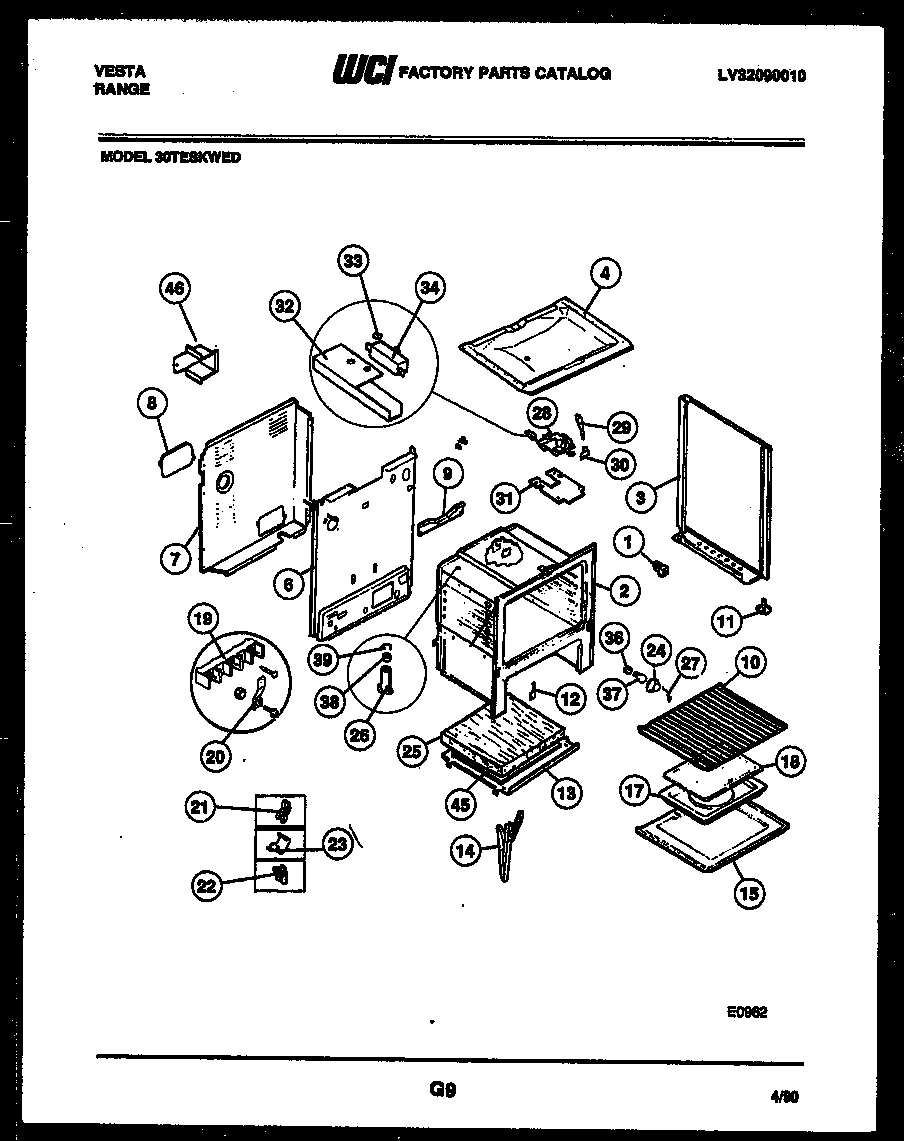

30TESKWED1 04 – BODY PARTS

Products

Position	Product
*36554	WCI 5303206618
*36553	ANTI-TIP KIT (NOT ILLUSTRATED)
*36554	INSULATION, OVEN TOP
*36554	3203550 Frigidaire Oven Plug
1	SPACER-BODYSIDE, (8)
3A	PNL-BODYSIDE RH-ALMOND
3A	PNL-BODYSIDE RH-WHITE
3	PNL-BODYSIDE LH-ALMOND
3	PNL-BODYSIDE LH-WHITE
4	WCI 08067749
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	PANEL-OVEN BOTTOM
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 08011708
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	5304524341 Frigidaire Lens
25	316403803 Frigidaire Insulation
26	WCI 3051344
27B	INSULATION OVEN BACK (NON-ILLUSTRATED)
27A	INSULATION, OVEN WRAPPER
27	RETAINER-GLASS
27C	3131903 Frigidaire Door/Drawer Bumper
28	WCI 5303015361
29	WCI 5303131357
30A	WCI 08013188
30	WCI 3203218
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	FSTNR-PUSH ON
34	WCI 3131672
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 08067810
39	WCI 08010606
45	WCI 3200848
45B	FASTENER-EDGE MTG (NOT ILLUSTRATED)
45A	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
46	WCI 3203582
